Product Description:
| Marketing Description: IOGEAR's new MiniView Extreme Multimedia
KVM and Peripheral Sharing Switch brings extra value to conventional
KVM switches by offering USB peripheral sharing capabilities, audio and
microphone support, and multi-platform support for Mac, Sun, USB and
PS/2. You can save money and space by eliminating the need for multiple
monitors, keyboards, mice, and peripheral devices such as printers,
scanners, zip drives, and more. Up to 127 different USB devices can be
daisy chained from this KVMP switch. Sharing speakers and a microphone
also offers extra value and convenience for the users. USB and KVM
technology together makes cross-platform management easy. A single USB
console can control a PC and a Mac, or even a Sun workstation, and
share peripherals and audio devices between the computers. Any
USB-enabled computers, using any USB-compatible operating system, can
benefit from the efficiency, expense reduction and convenience of
IOGEAR's Miniview Extreme KVMP switch. |
| Product Description |

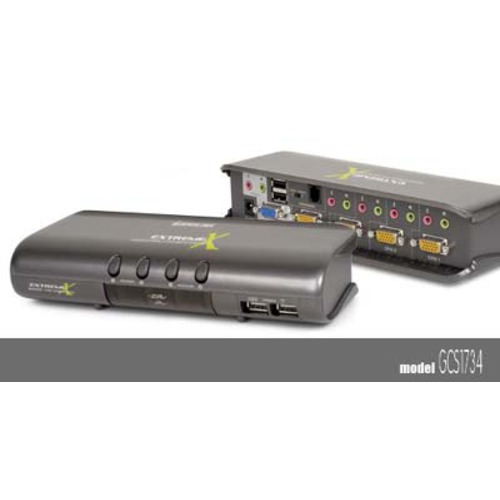

IOGear MiniView Extreme Mutimedia GCS1734 - KVM / audio
switch - 4 ports |
| Device Type |
KVM / audio switch |
| Form Factor |
External |
| Dimensions (WxDxH) |
8.1 in x 3.5 in x 1.9 in |
| Weight |
1.1 lbs |
| Ports Qty |
4 |
| KVM Users Qty |
1 local user |
| Data Transfer Rate |
12 Mbps |
| System Requirements |
UNIX, SunSoft Solaris, Linux, Apple MacOS 8.6 or later,
Microsoft Windows 98/ME/2000/XP |
| General |
| Device Type |
KVM / audio switch |
| Enclosure Type |
External |
| Width |
8.1 in |
| Depth |
3.5 in |
| Height |
1.9 in |
| Weight |
1.1 lbs |
| Networking |
| Ports Qty |
4 |
| Data Transfer Rate |
12 Mbps |
| Connectivity Technology |
Wired |
| Status Indicators |
Port status |
| KVM |
| KVM Local Users Qty |
1 local user |
| Max Resolution |
2048 x 1536 |
| Expansion / Connectivity |
| Interfaces |
1 x management - RJ-11
4 x speakers - input - mini-phone stereo 3.5 mm
4 x microphone - output - mini-phone 3.5 mm
4 x keyboard / mouse / video / USB - 15 pin HD D-Sub (HD-15) |
| Connections |
1 x keyboard - USB - 4 pin USB Type A - 1
1 x mouse - USB - 4 pin USB Type A - 1
1 x microphone - input - mini-phone 3.5 mm - 1
1 x speakers - output - mini-phone stereo 3.5 mm - 1
1 x display / video - VGA - 15 pin HD D-Sub (HD-15) - 1
1 x USB - 4 pin USB Type A - 1 |
| Miscellaneous |
| Cables Included |
4 x video / audio / USB cable
1 x data cable |
| Power |
| Power Device |
Power adapter - external |
| Software / System Requirements |
| OS Required |
UNIX, SunSoft Solaris, Linux, Apple MacOS
8.6 or later, Microsoft Windows 98/ME/2000/XP |
| Environmental Parameters |
| Min Operating Temperature |
39.2 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
0 - 80% |
|
|
