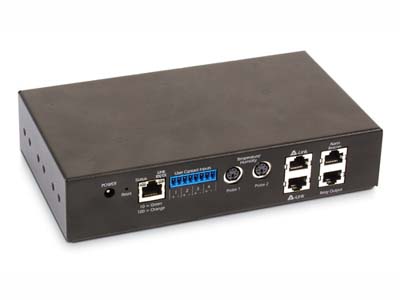

MODEL- AP9319             VENDOR- AMERICAN POWER CONVERSION

FEATURES- Environmental Monitoring Unit- Black
       Networked appliance enabling monitoring of environmental
        conditions.
       Browser Accessible, Customizable Input Contacts, Customizable
        Output Relays, Data Logging, Event logging, Fault Notification,
        Humidity Monitoring, Rack Mount, Read-only Access, Telnet
        Management, Temperature Monitoring.
       APC s Environmental Monitoring Unit is a browser-accessible 1U
        rackmountable appliance that allows monitoring of the included
        temperature and humidity sensor. Additional temperature and
        humidity sensors are also available. Early warnings of conditions
        that lead to equipment failure allow you to react to changes and
        minimize the impact on network availability. When conditions
        change, notifications are sent via email to the appropriate
        personnel. Four input contacts provide for monitoring of other
        equipment. An output relay allows you to define action remotely
        should conditions warrant it.
    Includes Monitoring Unit, CD with software, Humidity Sensor,
      Installation Guide, Rack Mounting Brackets, Temperature Sensor, User
      Manual.
* Manageability
  - Temperature Monitoring
    Changes in temperature are reported via the user interface or email.
    One combined temperature/humidity sensor is included.
  - Humidity Monitoring
    Changes in humidity are reported via the user interface or email. One
    combined temperature/humidity sensor is included.
  - Customizable Input Contacts
    Monitor conditions from third party devices that have contact closures.
  - Customizable Output Relays
    Control the output from third party devices via output relays.
* Convenience
  - Browser Accessible
    View the user interface with a browser. Gives quick access from
    anywhere on the network without the need to install software.
  - Fault Notification
    Notification of critical issues via email/pager or SNMP traps (events),
    ensures crucial situations are dealt with in a timely manner.
  - Telnet Management
    Provides a simple telnet session, SCP or SSH for remote management
    access.
  - Data Logging
    Identify problematic trends before they escalate or export the data log
    for analysis.
  - Event logging
    Pinpoint the timing and sequence of events leading up to an incident
    with the event log.
  - Network Management Integration
    Manage your APC devices from a single system by forwarding SNMP traps
    (events) to your preferred enterprise management system.
* Protection
  - Password Security
    User-selectable password protection.
  - Read-only Access
    Share access without risking unauthorized configuration changes to the
    systems.
  - Security
    Authentication and encryption features help ensure effective access
    control and integrity for SSL browser and SSH sessions.

  -- SPECIFICATIONs -------------------------------------
ENVIRONMENTAL- Operating Temperature: 32 ~ 104 degrees F
               Operating Humidity   : 0 ~ 95 %
               Operating Elevation  : 0 ~ 10,000 ft
               Storage Temperature  : 5 ~ 149 degrees F
               Storage Humidity     : 0 ~ 95 % Non-condensing
               Storage Elevation    : 0 ~ 50,000 ft
APPROVALS    - AS/NZS 3548 (C-Tick) Class A, EN 55022 Class A, EN 55024,
                FCC Part 15 Class A, ICES-003, VCCI
SIZE - 7.9"w x 1.75"h x 4.7"d   (1U)         WT.- 1.80 lbs.
   www.apcc.com
