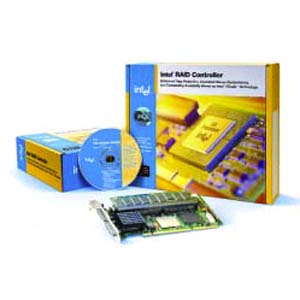

MODEL- SRCU42X            VENDOR- INTEL CORP.

FEATURES- Intel RAID Controller
       The Intel RAID Controller SRCU42X is a PCI-X, dual-channel, Ultra320
        SCSI RAID controller based on Intel XScale technology.
       High-availability, high-capacity applications require a delicate
        blend of power and flexibility. Embedded systems, complex
        networking solutions, and other I/O-intensive applications demand a
        storage solution delivering generous throughput rates and data
        protection for high-availability server environments.
       That solution is the Intel RAID Controller SRCU42X, which offers
        dual-channel Ultra320 SCSI technology along with the advanced I/O
        processing technology of the Intel IOP321 I/O processor. This makes
        the RAID Controller SRCU42X one of the few RAID controllers in the
        industry to offer integrators the remarkably high throughput
        supported by a PCI-X interface as well as the performance, power
        efficiency, and flexibility of the Intel XScale technology.
       With its 133MHz PCI-X interface, the RAID Controller SRCU42X
        achieves up to 1 GB per second maximum throughput. Its 400MHz Intel
        IOP321 processor offers a maximum throughput up to 1.6 GB per
        second and also supports up to 1 GB of PC1600 ECC DDR SDRAM. In
        addition, a new software suite based on PCI-X simplifies
        configuration, diagnostics, and firmware updates and enables
        integrators to offer a full set of RAID options at entry-level
        price points.

  -- HARDWARE SPECs --------------------------------------
INTERFACE/BUS- 64-bit/133MHz PCI-X interface (PCI 2.2 and PCI-X 1.0
                compliant), 3.3V adapter, backward compatible to 33MHz and
                66MHz.
PROCESSOR    - Intel IOP321 I/O processor: based on Intel XScale
                technology, with hardware XOR.
MEMORY       - Supports 32MB-1GB of PC1600 ECC DDR SDRAM (ships with 128MB
                DIMM installed).
SCSI         - Two-channel Ultra320 SCSI with support for up to 30 drives
                (15 per channel), each channel has one internal 68-pin
                connector (UHD LVD), and one external 68-pin connector
                (VHDC LVD).
INDICATORs   - Audible Alarm, LEDs
OPTIONS      - AXXRBBU1   Backup Battery for greater data reliability.
FORM FACTOR  - Half-length, full-height PCI: 175mm x 107mm (6.875" x 4.2")
  -- SOFTWARE SPECs ---------------------------------------
RAID LEVELS  - 0, 1, 5, 10, 50 and JBOD
SCALABILITY  - Online RAID-level migration and capacity expansion without
                reboot.
CONFIGURATION- Variable data stripe size-configurable per array,
                configurable JBOD enclosure support, support for non-hard-
                disk-drive SCSI devices (for example, tape,CD-ROM), and
                read/write controller and disk caching.
AVAILABILITY - Instant availability and background initialization,
                automatic rebuild with private (dedicated) or pooled
                (global) hot-fix (spare) drives, hot-plug drive support,
                and drive roaming.
  -- O/S SUPPORT ----------------------------------------
STANDARD VALIDATION-
               Windows 2003 Enterprise Server; Windows 2000 Advanced
                Server, Service Pack 4; Windows XP; Novell NetWare 6.0;
                SCO OpenServer 5.0.7 from Caldera; Red Hat Linux 8.0;
                Red Hat Linux 9.0; Red Hat Linux Enterprise Server 2.1;
                Caldera UnixWare 7.1.3; SuSE Linux 8.1 Professional;
                SuSE Linux Enterprise Server 8.
REQUIRES- Intel PC or equivalent with a RAID IOS enabled PCI 2.2 compliant
           slot.
APPROVALS- CSA C22.2, No. 60950/UL 60950 3rd Edition, EN60950, IEC60950
www.intel.com
