Manufacturer |
Tripp Lite |
Manufacturer Part Number |
N520-15M |
Manufacturer Website Address |
www.tripplite.com |
Product Name |

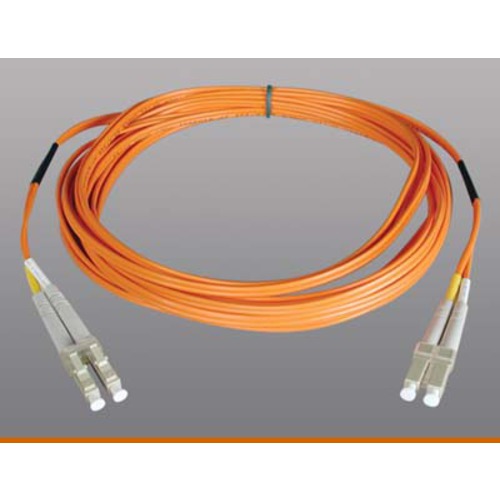

Duplex Fibre Channel Patch Cable |
Marketing Information |
Tripp Lite's multimode duplex fibre channel LC/LC patch cable
is manufactured from 50/125 zipcord fiber. The cable has LC connectors
on each end. It has a PVC jacket and is FDDI and OFNR rated. Duplex
multimode fiber is most commonly used in fiber and fibre channel
applications. It is backward compatible with 62.5 micron fiber and
built-in headroom for future applications. The cable provides higher
bandwidth optimized for gigabit and 10Gbps networks. Tripp Lite
warrants this product to be free from defects in materials and
workmanship for life.
|
Product Type |
Fibre Channel Patch Cable Multimode External |
|
Cable Length |
49.21ft |
Number of Connectors |
4 |
Connector Details |
2 x LC Male
2 x LC Male
|
Connectors |
2 x LC
2 x LC
|
Grade/Rating/Specifics |
50/125 micron cable |
Jacket |
PVC |
|
Shipping Dimensions |
9.5" Height x 6.5" Width x 1.25" Depth |
Shipping Weight |
0.38 lb |
|
Additional Information |
Fiber type: all glass graded index
Core diameter: two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM
maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM
minimum
Numeric apeture: .275 nominal
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db
typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
|
|
Standard Warranty |
Lifetime Limited |
