Product Description:
Features
- Supports a 32-bit 5 V PCI bus
- 96-CH digital TTL/DTL inputs/outputs (PCI-7296)
- 48-CH digital TTL/DTL inputs/outputs (PCI-7248)
- 24-CH digital TTL/DTL inputs/outputs (PCI-7224)
- Emulates 4/2/1 industry standard 8255 PPI (mode 0)
- Direct interface with OPTO-22 compatible I/O modules
- Output status read back
- On-board 8254 timer/counter chip
Introduction

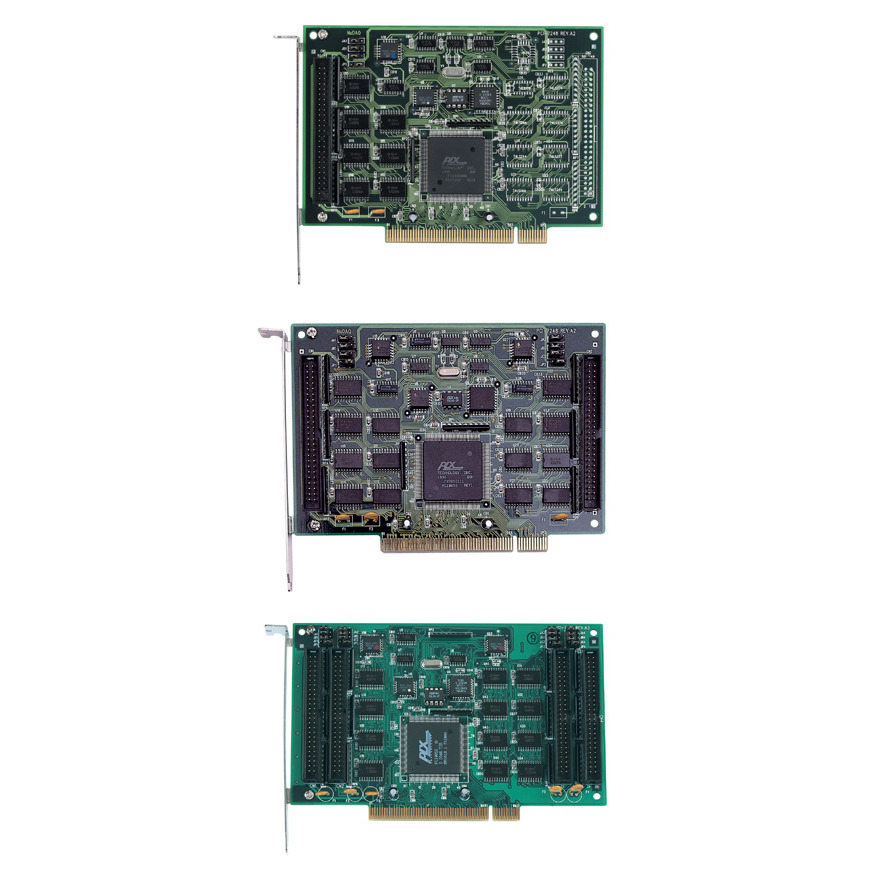

ADLINK PCI-7296/7248/7224 are high-density
parallel digital I/O boards with 96/48/24 I/O
channels. The header connectors are fully
compatible with industry Opto-22 standard.
Therefore, PCI-7296/48/24 can utilize the Opto-22
external devices. The PCI-7296/7248/7224 devices
emulate mode 0 of the industry standard 8255
programmable peripheral interface (PPI) chips. The
PCI-7296/7248/7224 provides 4/2/1 PPI chips
respectively. Each PPI offers three 8-bit ports, Port
A, Port B and Port C. The Port C is divided into 2
nibble-wide (4-bit) ports.
The PCI-7296/7248/7224 devices have
programmable timer/counters. One 16-bit counter
is available for event counting, while the other 32-
bit timer is available for timed interrupt generation.
The PCI-7296/7248/7224 devices provide multiple
programmable interrupt sources from DIO
channels, as well as the output of the timer.
|
