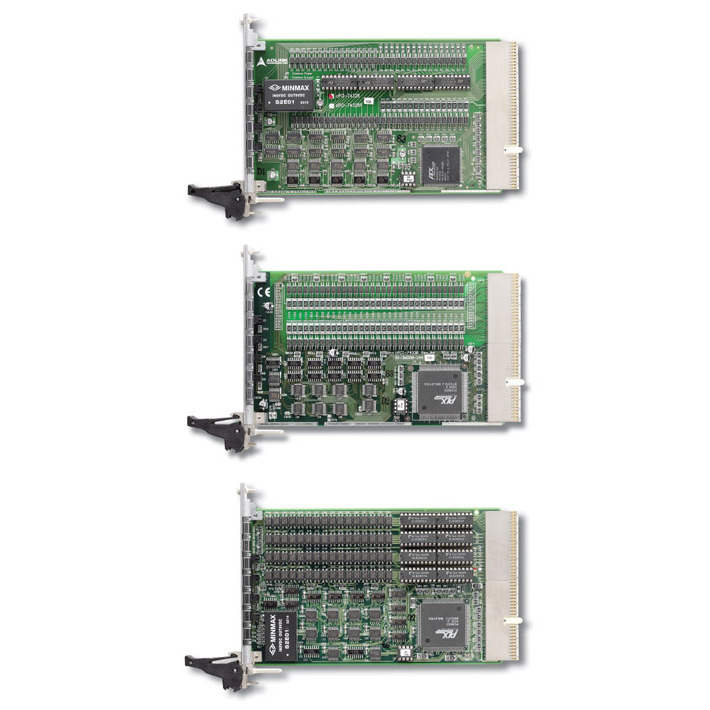

ADLINK Technology
Isolation 64-CH DO Cardrear I/O version


713962_ADLINK_cPCI7434R.jpg-
Manufacturer ADLINK Technology
Mfg. Part # cPCI-7434R
ITEM# 248488
Unit Price $454.99 (~CAD$567.15)
Availability Back Order
[ Get notified when product becomes available. ]
Buy


Shipping and Handling:
 INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation

No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]
[ View Detail Product Info ]


Product Description:

Features

  • 3U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R2.1)
  • Isolated Digital I/O, 32-CH isolated digital inputs and 32-CH isolated digital outputs (cPCI-7432, cPCI-7432R and cPCI-7432RP), 64-CH isolated digital inputs (cPCI-7433 and cPCI-7433R), and 64-CH isolated digital outputs (cPCI-7434, cPCI-7434R, cPCI-7434R
  • Non-polarity digital input range (cPCI-7432, cPCI-7432R, cPCI-7432RP, cPCI-7433 and cPCI-7433R)
  • Isolated input voltage up to 24 V (cPCI-7432, cPCI-7432R, cPCI-7432RP, cPCI-7433 and cPCI-7433R)
  • Isolation Voltage, 5000 VRMS (cPCI-7432, cPCI-7433, cPCI-7434, cPCI-7434R, cPCI-7434P, cPCI-7434RP), and 2500 VRMS (cPCI-7432R, cPCI-7432RP, cPCI-7433R)
  • Sink current up to 500mA on each isolated output
  • Two external interrupt sources (cPCI-7432, cPCI-7432R, cPCI-7432RP, cPCI-7433 & cPCI-7433R)

    Introduction

    The ADLINK cPCI-743X series cards are 64-CH high-density digital input and/or output cards. They provide a robust 2,500 VRMS isolation protection which is suitable for most industrial applications. The wide input range of the cPCI-7432 series and cPCI-7433 series makes it easy to sense the status of external devices. The cPCI-7432 series and cPCI-7434 series feature a wide output range from 5 to 35 V, suitable for relay driving and industrial automation applications. The cPCI-7432, cPCI-7432R, cPCI-7434, cPCI-7434R provide sink drive output type while the cPCI-7432RP, cPCI-7434P and cPCI-7434RP provide source drive output type. The cPCI-7432 series and cPCI-7433 series also provide two interrupt sources on digital input channels, which are easily user configurable.
