ADLINK

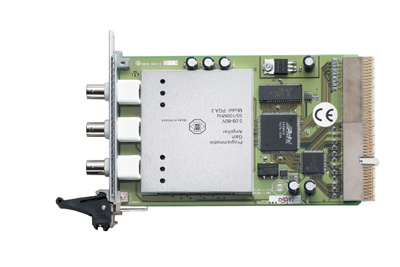

Digital Storage Oscilloscope, Spectrum Analyzer, Transient Recorder, Voltmeter 100MS/s 50MHz

714168_ADLINK_TE6100PXI.jpg-DIGITAL_STORAGE_OSCILLOSCOPE_SPECTRUM_ANALYZER_TRANSIENT_RECORDER_VOLTMETER_100MS_50MHZ

Manufacturer	ADLINK
Mfg. Part #	TE-6100-PXI
ITEM#	248196
Unit Price	$3,216.26 (~CAD$3,209.51)
Availability	In Stock
Buy

*Currency Conversion Rate: US$1.00 = CAD$0.9979

Volume	Each	Landing Price/Each
1 ~ 2	$3,216.26 (~CAD$3,209.51)	$3,306.76 or less (~CAD$3,299.82)
3 ~ 7	$3,180.68 (~CAD$3,174.01)	$3,262.18 or less (~CAD$3,255.33)
8 ~ 14	$3,145.11 (~CAD$3,138.51)	$3,223.42 or less (~CAD$3,216.66)
15 ~ 19	$3,109.53 (~CAD$3,103.00)	$3,186.50 or less (~CAD$3,179.81)
20 ~	$3,073.95 (~CAD$3,067.50)	$3,149.98 or less (~CAD$3,143.37)

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

Product Description:

Features

Four Instruments In One

100 MS/s DSO/Spectrum

DC to 50 MHz Bandwidth

100 mV to 80 V Full Scale

Powerful Software

Introduction

The TE6100 is the first 100 MS/s measuring instrument that consists of a Digital Storage Oscilloscope, Spectrum Analyzer, Transient recorder and Voltmeter. This new PXI based and compact measuring instrument can solve almost every measurement problem. Analyzing signals is done with an 8-bit resolution and a maximum sampling speed of 100 MS/s. The input ranges from 0.1 Volt full scale to 80 Volt full scale. The record length is 32K/64K samples.
