| Manufacturer |
Startech Computer Products |
| Manufacturer Part Number |
ATXPOWER300B |
| Manufacturer Website Address |
www.startech.com |
| Product Name |

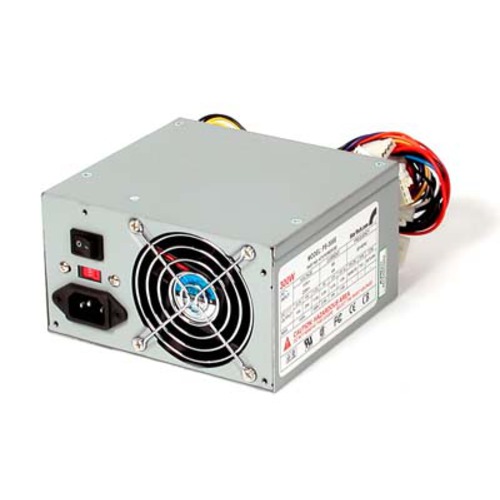

ATXPOWER 300W Power Supply |
| Marketing Information |
Instantly replace your old ATX power supply with the reliable
ATXPOWER 300W Power Supply. It may be the last computer power supply
you ever buy thanks to a long life transformer and built-in
short-circuit protection
|
| Product Type |
ATX Power Supply
ATX 12V
|
|
| Cooling |
Temperature controlled smart fan |
| MTBF |
40000 Hour(s) |
|
| Input Voltage |
115V AC
230V AC
|
| Current |
8A @ 115V AC Input Current
4A @ 230V AC Input Current
29A @ 5V DC Output Current
15A @ 3.3V DC Output Current
11.5A @ 12V DC Output Current
1.5A @ 5V DC Standby Output Current
0.5A @ -5V DC Output Current
0.5A @ -12V DC Output Current
|
| Frequency |
50 Hz or 60 Hz |
| Output Power |
300 W |
|
| Connectors |
6 x 4-pin LP4 Hard Drive
1 x 20-pin ATX Motherboard Adapter
2 x 4-pin SP4 Floppy Drive
|
|
| Dimensions |
5.9" x 3.35" x 5.87" |
| Shipping Dimensions |
7" Height x 17.5" Width x 18.5" Depth |
| Shipping Weight |
41.36 lb |
|
| Additional Information |
Provides extra power capacity for PC servers with several
hard drives
Provides the extra current required by 1 GHz and faster CPUs
Provides extra power required by leading edge 3D video
accelerator cards
Provides extra current and power capacity for overclocking
CPUs
High quality connectors provide minimal resistance and
enhanced electric conductivity
Premium EMI/RFI power filtration system provides low
noise/ripple for super clean and stable power to all system components
10 Piece Bulk Pack
|
| Compatibility |
Pentium II, III and IV Processors
AMD K6, Athlon and Duron processors
|
|
| Standard Warranty |
2 Year(s) |
