| Manufacturer |
Intel Corporation |
| Manufacturer Part Number |
BXM80535GC1700E |
| Manufacturer Website Address |
www.intel.com |
| Product Line |
Pentium M |
| Product Name |

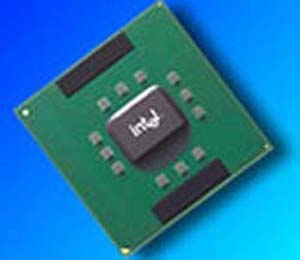

Mobile Pentium 1.70 GHz Processor |
| Marketing Information |
High performance and low power
micro-architecture
Advance Branch Prediction and Data Prefetch logic
Streaming SIMD Extension 2 (SSE2) enable break through level
of
performance in multimedia application including 3D graphics, video
decoding/encoding, and speech recognition
Advance branch prediction architecture that significantly
reduces the number of mispredicted branches
Double precision Floating point instructions enhance
performance for
application that require greater range and precision, including
scientific and engineering applications and 3D geometry techniques,
such as ray tracing
|
| Packing |
Box |
| Package Type |
Retail |
|
| Clock Speed |
1.70GHz |
| Bus Speed |
400MHz FSB |
| Cache Memory |
32KB L1 (Instruction) - 1MB L2 (Advanced
Transfer)
32KB L1 (Data)
|
| Instruction Set |
X86-to-RISC |
| Architecture |
32-bit Dynamic Execution Microarchitecture |
| Process Technology |
0.13µm |
| Multimedia Extensions |
Streaming SIMD Extention 2 (SSE-2)
MMX
|
| Featured Technologies |
Enhanced SpeedStep Technology |
| Platform Support |
PC |
|
| Input Voltage |
1.484V DC Core |
|
| Temperature |
100 °C (212 °F) Maximum Operating |
|
| Form Factor |
478-pin PPGA FC-PGA2 Socket 478 |
| Shipping Dimensions |
2.75" Height x 6.5" Width x 7.25" Depth |
| Shipping Weight |
0.26 lb |
|
| Additional Information |
Core Stepping: B1
Thermal Guideline: 24.5W
Bus/Core Ratio: 17
Advanced Branch Prediction and Data Prefetch Logic
Power-optimized processor system bus
Advanced thermal monitoring capabilities
Advance Power Management Feature
Internet Streaming SIMD instructions and full compatibility
with IA-32 software
Manufactured on Intel's advanced 0.13 micron process
technology with copper interconnect
Micro op Fusion and Advance Stack Management that reduce the
number of micro ops handled by the processor
400Mhz, Sources Synchronous processor system bus to improve
performance by transferring data four times per bus clock
|
|
| Standard Warranty |
3 Year(s) Limited |
