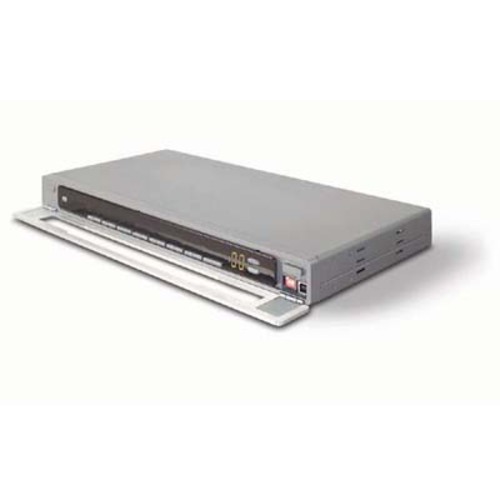

MODEL- F1DE108C           VENDOR- BELKIN COMPONENTS

FEATURES- OmniView ENTERPRISE Quad-Bus Series 1x8 KVM Switch
           with Micro-Cabling Technology
       The 1X8 KVM Switch from Belkin allows control up to 8 servers from
        one consoles and is expandable to control up to 248 servers from up
        to four consoles. Using the most advanced technology to the KVM
        market in our patent-pending, quad-bus technology, this innovation
        lets four server administrators simultaneously control up to 248
        computers in a daisy-chain configuration (maximum of 16). Complete
        your KVM solution with the high-performance connections you need
        (see cables listed at right). With a 60% reduction in size, our
        proprietary cabling technology offers easy cable management and
        cable bulk reduction. Supporting a high-quality resolution of up to
        2048x1536@85Hz through a 400MHz bandwidth for all daisy-chained KVM
        switches.
       Belkin innovation brings another key advantage in the powerful yet
        easy-to-use IntelliView Graphical On-Screen Display (OSD). Based on
        a Windows operating system design, IntelliView allows the
        administrator to name, group, sort, or select the connected servers
        or server groups from the keyboard or mouse. IntelliView enables
        administrators to group servers together, and to assign three
        levels of security rights to user groups.
 * Delivers quad-bus technology, for expanded control by up to four users
 * Includes a powerful graphical OSD for extensive control over connected
   servers
 * Offers cross-platform support for USB and PS/2 interfaces
 * Provides multilevel security for added protection of connected servers
 * Flash upgrades firmware for future system enhancements or updates
 * Features hot keys for immediate switching between servers
 * Depicts the active servers with interactive front-panel user interface
 * Saves space with a 1U design for 19-inch racks
 * Features high-level system diagnostics to avert and warn of problems
 * Update your KVM Firmware http://autoupdate.belkin.com
www.belkin.com
