Product Description:
| Product Description |

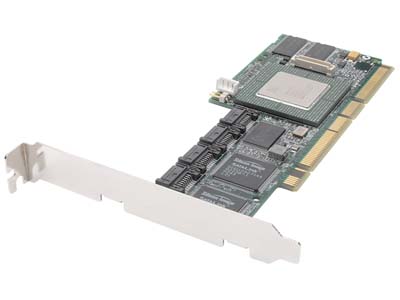

Adaptec Serial ATA RAID 2410SA - storage controller (RAID) -
SATA-150 - PCI 64 |
| Device Type |
Storage controller (RAID) - plug-in card |
| Interface(s) Required |
PCI 64 / 66 MHz |
| Dimensions (WxDxH) |
6.6 in x 2.5 in |
| Controller Interface Type |
Serial ATA-150 |
| Data Transfer Rate |
150 MBps |
| Buffer Size |
64 MB |
| Supported Devices |
Hard drive |
| Max Storage Devices Qty |
4 |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10, JBOD |
| System Requirements |
Microsoft
Windows 2000 Server, Microsoft Windows 2000 Advanced Server, Microsoft
Windows 2000 Professional , UnixWare 7.1.1, Caldera OpenUnix 8,
Microsoft Windows XP Home Edition, Microsoft Windows XP Professional,
Red Hat Linux 7.3, SuSE Linux 8.0, SuSE Linux 8.1, Red Hat Linux 8.0,
Microsoft Windows Server 2003 |
| Manufacturer Warranty |
3 years warranty |
Marketing Informatin
|
The Adaptec Serial ATA RAID 2410SA
is a 4-port native Serial ATA I/O processor-based RAID controller that
supports Adaptec's advanced feature set, including Optimized Disk
Utilization, Online Capacity Expansion and RAID Level Migration. The
Adaptec 2410SA supports SATA 2 features including enclosure management
and backplanes. Adaptec Storage Manage - Browser Edition provides
centralized management for Adaptec host-based RAID controllers. The
Adaptec 2410SA supports RAID levels 0, 1, 5, 10, and JBOD
configurations and features 64 MB of fixed ECC SDRAM cache memory. |
| General |
| Device Type |
Storage controller (RAID) - plug-in
card |
| Interface Type |
PCI 64 / 66 MHz |
| Depth |
6.6 in |
| Height |
2.5 in |
| Compatibility |
PC, Unix |
| Storage Controller |
| Controller Interface Type |
Serial ATA-150 |
| Data Transfer Rate |
150 MBps |
| Buffer Size |
64 MB |
| Supported Devices |
Hard drive |
| Max Storage Devices Qty |
4 |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10, JBOD |
| Processor |
Intel 80302 |
| Expansion /
Connectivity |
| Provided Interfaces |
4 x storage - Serial ATA-150 - 7 pin
Serial ATA |
| Compatible Slots |
1 x PCI 64 / 66 MHz - low-profile |
| Miscellaneous |
| Cables Included |
1 x Serial ATA cable - internal -
3.3 ft |
| Mounting Kit |
Included |
| Software / System
Requirements |
| Software Included |
Drivers & Utilities, Adaptec
Storage Manager Browser Edition |
| OS Required |
Microsoft
Windows 2000 Server, Microsoft Windows 2000 Advanced Server, Microsoft
Windows 2000 Professional , UnixWare 7.1.1, Caldera OpenUnix 8,
Microsoft Windows XP Home Edition, Microsoft Windows XP Professional,
Red Hat Linux 7.3, SuSE Linux 8.0, SuSE Linux 8.1, Red Hat Linux 8.0,
Microsoft Windows Server 2003 |
| Manufacturer Warranty |
| Service & Support |
3 years warranty |
| Service & Support Details |
Limited warranty - 3 years |
| Environmental
Parameters |
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
131 °F |
|
