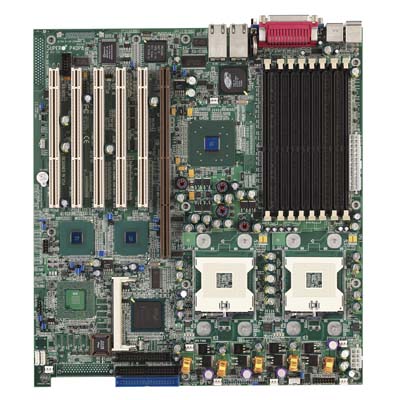

MODEL- X5DPE-G2-0          VENDOR- SUPER MICRO

FEATURES- Dual Xeon Motherboard
       Extended ATX Motherboard that supports Dual Intel Xeon processors
        and Intel E7501 chipset.
       533/400 MHz Front Side Bus
       Up to 16GB of DDR-266/200 ECC registered DDR DIMMS.
       On-board ATI Graphics, Intel dual-port Gigabit LAN controller and
        up to (5) USB ports.
  Includes mainboard, CPU heatsink retention and clips, (1) three-ended
    80-wire/40-pin IDE UDMA/100 ribbon cable for high speed UDMA IDE
    devices, (1) floppy ribbon cable, (2) Fan-042 with heatsink and
    BIOS/drivers CD.

  -- SPECIFICATIONs ---------------------------------
PROCESSOR - Supports Dual Intel Xeon processors up to 2.80GHz with 512K
             L2 cache.
            533/400 MHz Front Side Bus
BIOS      - Phoenix 4Mb Flash ROM
            RTC (Real-Time Clock) wakeup
            External modem remote ring-on when system is in Soft-Off state.
            BIOS rescue hot keys for rescuing BIOS chip from flash failure.
            Hardware BIOS virus protection
CHIPSET   - Intel E7501
MEMORY    - Supports up to 16 GB ECC registered DDR-200/266 memory in 8 DIMM
             slots (This product has been designed to support 2GB DIMM
             modules for each memory slot, but it has only been validated on
             1GB memory modules).
            Supports only registered ECC memory. Non-ECC or Unbuffered
             memories are not supported.
            Two-way interleaved memory banks provide outstanding memory
             performance. (must use a pair of DIMMs for memory to
             function).
SLOTS     - Max up to 3 64-bit 133MHz PCI-X.
            (3) 64-bit 100MHz PCI-X
            (3) 64-bit 66MHz PCI
            (1) VXB (Virtual Extended Bus)
AUDIO     - None
VIDEO     - ATI Rage XL 8MB PCI graphic controller
ETHERNET  - Intel 82546EB dual port Gigabit Ethernet controller
PCI IDE   - Dual EIDE ports support Ultra DMA 100MB/s of Burst data
             transfer rate, supports UDMA Mode 5, PIO Mode 4 and ATA/100.
I/O PORTS - Up to (5) USB ports
            (2) PS/2 ports for keyboard and mouse
            (2) fast UART 16550 compatible Serial ports
            (1) ECP/EPP parallel port
            (1) floppy port
            (1) 15-pin VGA port
            (2) 1000BaseT/RJ45 ports
PC HEALTH- Monitoring the voltages of the CPU core and the status of system
            power supply (+3.3V, + 5V, + 12V).
           CPU/chassis temperature monitoring, CPU fan auto-off in sleep
            mode, CPU overheat LED header, LED and control for chassis
            intrusion detection, System resource alert, Support for system
            management software.
MANAGEMENT- LDCM (LANDesk Client Manager)
            DMI support
MISC.   - Wake-on-LAN allows for remote network management and
           configuration of the PC, even in off-hours when the PC is turned
           off. This reduces the complexity of managing a network.
          Onboard 3-phase switching power regulator supports CPU core
           voltages from 1.1 ~ 1.85 volts.
          6 tachometer fan connectors (for CPU, chassis, and thermal
            control fans).
          Keyboard wake-up from Soft-off
          CPU frequency settings - changeable in BIOS setup
          Connector for LED overheat indicator
          Overheat backup fan connector for CPU protection
          ACPI/APM power management
          Internal/external modem ring-on
          Control of power-on mode for recovery from AC power loss
          One WOL (Wake-On-LAN) connector
          One chassis intrusion header
          Chipkill support
          CPU thermal trip support
SOFTWARE-
SIZE - Extended ATX 12" x 13.05"
       To ensure system stability, a 350W (minimum) ATX12V power supply
        (besides the 20 pins, both 4-pin and 8-pin +12v power connector)
        is required.
