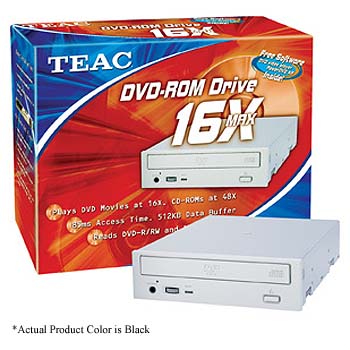

MODEL- DV516E/KIT-B       VENDOR- TEAC AMERICA INC.

FEATURES- DVD-ROM Drive- Black  Retail Kit
       The TEAC DV516E/KIT is TEAC's new 16X DVD-ROM Internal Drive. It
        plays DVD-movies at 16X speed, provides 48X CD-ROM performance and
        delivers smooth video playback. The drive is equipped with 512KB
        data buffer.
       Can be mounted in Horizontal and Vertical format.
  Includes TEAC 16X DVD-ROM drive, Audio cable, Mounting screws, PowerDVD
     XP video player software CD-ROM disc and Installation guide.
 * TEAC s DV-516E 16X Max. DVD-ROM drive combines smooth DVD video playback
   with impressive CD-ROM performance. It supplies your PC with an even
   stream of data thanks to its 21.6MB (16X) per second DVD transfer rate.
   As a CD-ROM player, it delivers 48X max. performance and an 85ms average
   access time. And it spins at a Constant Angular Velocity (CAV) which
   optimizes the drive s throughput by rotating the disc at a consistent
   speed.
 * The TEAC 16X DVD-ROM is your PC s perfect multimedia companion. Whether
   you re watching movies, listening to music, playing a DVD title or
   installing new software, the DV-516E fits the bill. It reads all major
   DVD and CD formats including single and dual layer DVD videos. In
   addition, the drive supports both standard 12cm and mini 8cm discs and
   reads DVD-R/RW and DVD+RW media.
 * This drive is built rock-solid for years of dependable use. It utilizes
   an IDE/ATAPI interface, which provides easy integration and for added
   versatility, it can be installed horizontally or vertically.

INTERFACE/BUS - IDE/ATAPI
CAPACITY      - 700MB (Data), 80Min. (Audio)
TRANSFER RATE - DVD: 8.91MBps (6.6X) to 21.6MBps (16X) CAV
                 CD: 3.09MBps (20.6X) to 7.2MBps (48X) CAV
   Audio Extraction: 40X Maximum
ACCESS TIME   - DVD: 85msec (1/3 stroke)
                 CD: 85msec (1/3 stroke)
DATA BUFFER   - 512 KB
DISC FORMATS  - DVD Single and Dual Layer; DVD-R; DVD-RW; DVD+RW; Audio CD;
                 CD-ROM Mode-1; CD-ROM XA Mode-2 (Form1, Form2);
                 Super Video CD; CD-Extra (CD Plus); UDF; CD-I; Photo CD
                 (Single and Multisession); CD-R; CD-RW (MultiRead).
DISC SIZE     - 12cm and 8cm
DISC LOADING  - Motorized Loading Tray
FRONT PANEL   - Built-in Headphone Jack, Volume Control Knob, Power Disc
                 Eject/Load Button and LED Indicator.
SOFTWARE- PowerDVD XP video player software CD-ROM disc
REQUIRES- IBM PC compatible Pentium II 350MHz or higher
          64MB RAM minimum
          20MB of free hard drive space
          Graphics accelerator with DirectDraw
          Sound card
          Windows 98SE, Me, XP, NT 4 SP5+ or Win 2000
APPROVALS- CE, FDA, UL, CUL, CSA, TUV, FCC
MTBF - 100,000 Power On hours.
POWER- +12 volt DC and +5 volt DC
SIZE - 5.83"w x 1.67"h x 7.80"d            WT.- 2.31 lbs.
       www.teac.com
