| Model name |

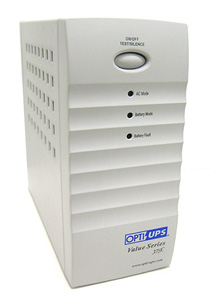

VS375C
|
|
Topology
|
Standby
|
|
On-battery
Output Waveform
|
Step Wave
|
| INPUT |
| Maximum Capacity |
375VA/225W
|
| Nominal Input Voltage |
100/110/120V or
220/230/240V
|
| Input Frequency |
50/60Hz Auto sensing
|
| Input Short Protection |
Fuse
|
|
AC line receptacle
|
120V models
|
NEMA 5-15P
|
|
|
230V models
|
Depends on local
standards
|
|
OUTPUT
|
| Nominal Output
Voltage |
100/110/120Vac or
220/230/240Vac
|
| Output Voltage Regulation |
Rated Voltage +/- 5%
|
| Transfer Time |
4 ms (typical)
|
|
Auto Restart
|
Yes
|
| Start on Battery |
Yes
|
|
Type and Number of Outlets
|
120V models
|
NEMA 5-15R
3xBattery Backup + 3xSurge
|
|
|
230V models
|
IEC 320 C13
3xBattery Backup + 3xSurge
|
|
| SURGE PROTECTION
& FILTERING |
Data Line Protection
|
RJ11 / RJ45
|
| Surge Energy Rating |
1050 Joules
|
| Normal Mode Noise Suppression |
Full time EMI/RFI
filtering
|
| USER REPLACEABLE
BATTERY |
User Replaceable Battery
|
12V / 3AH x 1
|
Typical Back-up Time (1PC + 1 LCD)*
|
10 ~15 min.
|
| Full load runtime |
1.5 Minutes (375VA)
|
| Half load runtime |
7.2 Minutes (200VA)
|
Typical Recharge Time
to 90%
|
<4 Hours
|
| ADVANCE WARNING DIAGNOSTICS |
Front Panel LEDs
|
AC mode, Battery
mode, Battery fault
|
| Audible Alarms |
On-Battery,
low-Battery, Overload
|
| COMMUNICATIONS
INTERFACE |
| Communication Port ** |
RS232**
|
| ENVIRONMENTAL |
| Operating Temperature |
0°~40°C /
32°~104°F
|
| Storage Temperature |
-20°~60°C /
-4°~140°F
|
| Audible Noise |
< 40 dBA
|
| PHYSICAL |
Dimensions (LxWxH):
|
Physical |
7.9x3x6.9 inch /
200x77x175 mm
|
| Packing |
9.6x5x9.8 inch /
245x128x250 mm
|
Weight :
|
Net |
5.1 lbs / 2.3kg
|
| Gross |
6.5 lbs / 2.9kg
|
| CONFORMANCE |
| Approvals |
BSMI; CE; GOST-R;
UL/cUL; C-Tick; A-Tick
|
