Description
|

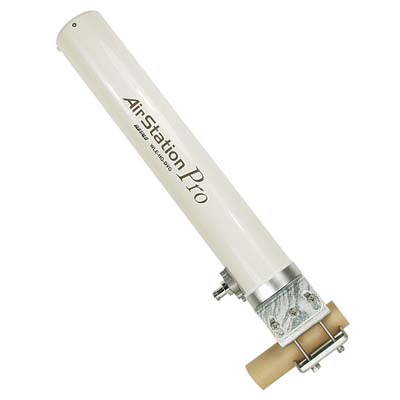

The external 2.4GHz Outdoor
Directional Antenna connects to the AirStation Access Points
extending the range of your
wireless network environment. The 14dB Outdoor Antenna may be used to
communicate between buildings or other point-to-point /
point-to-multi-point situations.
Compatible with all Buffalo 2.4GHz Access Points (Access Points)
including the new AirStation G54 Series Access Points. |
Manufacturers Part Number
|
| WLE-HG-DYG |
Features
|
- Light weight
- Frequency range of 2401-2484MHz (1~11ch)
- Applications are for 1:1communication or 1:N communication.
- Approximately 1.9mile range (3km) of each device Outdoor
Directional Antenna is connected to.
|
| Communication Range |
Antenna
(cable length) |
Flat
Diversity
Antenna (65') |
Omni
(15') |
Omni
(30') |
Omni
(65') |
Flat Diversity
Antenna (65') |
1/3 [mile] |
0.7/1.5 [mile] |
0.6/1.2 [mile]
0.4/0.8 [mile] |
0.4/0.8 [mile] |
| Omni (15') |
|
0.6/1.2 [mile] |
0.5/1.0 [mile] |
0.3/0.7 [mile] |
| Omni (30') |
|
|
0.4/0.7 [mile] |
0.3/0.5 [mile] |
| Omni (65') |
|
|
|
0.2/0.4 [mile] |
|
| Technical
Specifications |
|
|
Manufacturer |
Buffalo Technology |
| Manufacturer
Part Number |
WLE-HG-DYG |
| Manufacturer
Website Address |
www.buffalotech.com |
| Product Line |
AirStation |
| Product Name |
AirStation WLE-HG-DYG 2.4GHz Outdoor Directional
Antenna |
| Marketing
Information |
The
external 2.4GHz Outdoor Directional Antenna (WLE-HG-DYG) connects to
the AirStation Access Points extending the range of your wireless
network environment. The 14dB Outdoor Antenna may be used to
communicate between buildings or other point-to-point /
point-to-multi-point situations.
|
| Product Type |
Directional Antenna |
|
| Antenna Range |
1.9 mi Outdoor Approximate |
| Frequency |
2.401 GHz to 2.484 GHz |
| Gain |
14 dBi |
| Polarization |
Vertical |
| Survival
Wind Speed |
60 m/s |
| VSWR |
< 1.5:1 |
| Transmit
Power |
10W |
|
| Temperature |
30 °C (86 °F) to 75 °C (167 °F)
Operating |
| Humidity |
20% to 95% Operating |
|
| Additional
Information |
Operating Pressure: 800-1060 hPa
Wind Resistance: 60 m/s or more
VSWR: 1.5 or less (with co-axial cable)
Antenna Gain: 14 dBi or more (antenna only)
Channel Support: (1-11)
Polarization Method: Flat Diversity
Antenna(uni-directional)
Applications are for 1:1communication or 1:N
communication
Polarity, Vertical: 32 ± 5° Half value angle
Polarity, Horizontal:32 ± 5° Half value angle
Installation Method: Pole Mount (Pole not included)
|
|
| Standard
Warranty |
2 Year(s) |
|
