Product Description:
| Marketing Description: The MiniView Ultra G-CS138 KVM Switch is
a control unit that allows access to multiple computers from a single
console keyboard, monitor, and mouse). Before the development of the
MiniView Ultra, the only way to control multiple computer
configurations from a single console was through a complex and costly
network system. Now, with the MiniView Ultra G-CS138, you can easily
access multiple computers in a cost-effective manner. A MiniView Ultra
G-CS138 unit can control up to 8 PCs. Units can be cascaded to three
levels, which means that up to 73 MiniView units can control up to 512
PCs - all from a single console. Setup is fast and easy; plugging
cables into their appropriate ports is all that is entailed. There is
no software to configure, so there is no need to get involved in
complex installation routines or be concerned with incompatibility
problems. Since the MiniView Ultra CS-138 intercepts keyboard input
directly, it works on virtually any hardware platform and with all
operating systems. The MiniView Ultra G-CS138 provides three convenient
methods to access any PC connected to the system. In addition, a
powerful Quick View Scan feature allows you to auto scan and monitor
the activities of all operating PCs on the installation one by one.
There is no better way to save time and money than with a MiniView
Ultra G-CS138 installation. By allowing a single console to manage all
the attached PCs, the MiniView Ultra GCS138 eliminates the expense of
purchasing a separate keyboard, monitor, and mouse for each PC as well
as saving all the space they would take up. It also eliminates the
inconvenience and wasted effort involved in constantly moving around
from one PC to another. |
| Product Description |

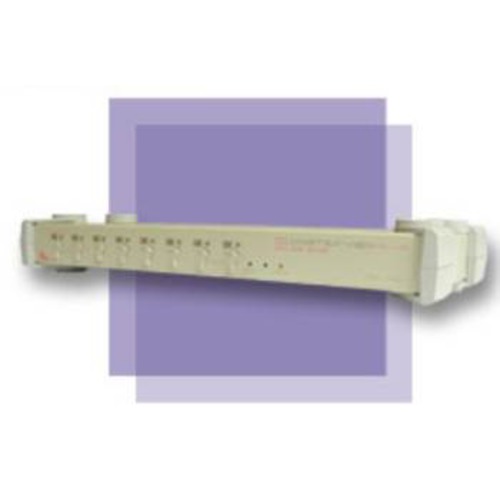

IOGear MiniView Ultra KVM Switch GCS138 - KVM switch -
8 ports |
| Device Type |
KVM switch |
| Form Factor |
External - 1 U |
| Dimensions (WxDxH) |
17 in x 6 in x 1.7 in |
| Ports Qty |
8 |
| KVM Users Qty |
1 local user |
| Manufacturer Warranty |
3 years warranty |
| General |
| Device Type |
KVM switch |
| Enclosure Type |
External - 1 U |
| Width |
17 in |
| Depth |
6 in |
| Height |
1.7 in |
| Networking |
| Ports Qty |
8 |
| Connectivity Technology |
Wired |
| Status Indicators |
Power, status |
| KVM |
| KVM Local Users Qty |
1 local user |
| Max Resolution |
1920 x 1440 |
| Expansion / Connectivity |
| Interfaces |
8 x keyboard - generic - 6 pin mini-DIN
(PS/2 style)
8 x mouse - generic - 6 pin mini-DIN (PS/2 style)
8 x display / video - VGA - 15 pin HD D-Sub (HD-15) |
| Connections |
1 x keyboard - generic - 6 pin mini-DIN
(PS/2 style) - 1
1 x mouse - generic - 6 pin mini-DIN (PS/2 style) - 1
1 x display / video - VGA - 15 pin HD D-Sub (HD-15) - 1 |
| Miscellaneous |
| Rack Mounting Kit |
Included |
| Compliant Standards |
DDC-2B |
| Power |
| Power Device |
Power adapter - external |
| Manufacturer Warranty |
| Service & Support |
3 years warranty |
| Service & Support Details |
Limited warranty - 3 years
Technical support - lifetime |
|
|
