AXIS

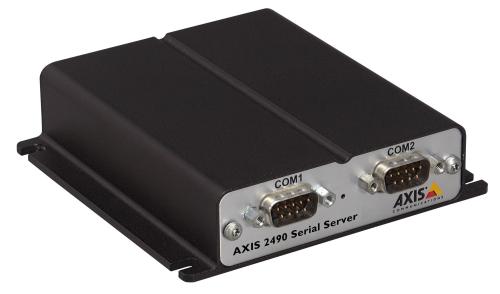

AXIS 2490 SERIAL SERVER

140560_AXIS_010800402_2.jpg-AXIS_2490_SERIAL_SERVER

Manufacturer	AXIS
Mfg. Part #	0108-004-02
ITEM#	157916
Unit Price	$291.60 (~CAD$290.99)
Availability	In Stock
Buy

*Currency Conversion Rate: US$1.00 = CAD$0.9979

Volume	Each	Landing Price/Each
1 ~ 2	$291.60 (~CAD$290.99)	$301.59 or less (~CAD$300.96)
3 ~ 7	$288.23 (~CAD$287.63)	$298.22 or less (~CAD$297.60)
8 ~ 14	$284.85 (~CAD$284.26)	$294.84 or less (~CAD$294.23)
15 ~ 19	$281.48 (~CAD$280.89)	$291.47 or less (~CAD$290.86)
20 ~	$278.10 (~CAD$277.52)	$288.09 or less (~CAD$287.49)

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

[ View Detail Product Info ]

Product Description:

AXIS 2490 Serial Server

The AXIS 2490 Serial Server allows serial devices to connect directly to an Ethernet network without using a PC, thus providing remote access to these resources via HTTP and TCP/IP.

Features:

Connects serial devices to IP networks
Built-in Web server
10/100 Mbit Ethernet connection
Two RS 232 ports and one RS 485/422 port
Password protection and IP address filtering

Application possibilities

	Older computer devices that have no network connectors can now be accessed directly via a LAN/Internet. Examples of serial devices that can be used with the serial server include card readers, keypads, control panels and bar code readers.
	The network solution makes it possible to contact the application/device remotely. The device can be managed from anywhere within the network and controlled centrally, which is useful if many people need access. Service engineers especially, will find it convenient to troubleshoot devices remotely.

Main Specifications

Product Description	Axis Serial Server 2490 - serial adapter
Device Type	Serial adapter
Enclosure Type	External
Dimensions (WxDxH)	4.4 in x 4.3 in x 1.1 in
Weight	0.7 lbs
Processor	1 x ETRAX 100 100 MHz RISC
RAM Installed ( Max )	8 MB
Flash Memory Installed (Max)	2 MB flash
Data Link Protocol	Ethernet, Fast Ethernet, serial
Network / Transport Protocol	TCP/IP
Remote Management Protocol	HTTP
Features	Full duplex capability, manageable
Power	AC 110/220 V ± 10% ( 50/60 Hz )
Manufacturer Warranty	1 year warranty

General
Device Type	Serial adapter
Width	4.4 in
Depth	4.3 in
Height	1.1 in
Weight	0.7 lbs
Enclosure Color	Black
Processor / Memory / Storage
Processors Installed	1 x ETRAX 100 100 MHz RISC
RAM Installed ( Max )	8 MB
Flash Memory Installed (Max)	2 MB flash
Networking
Form Factor	External
Connectivity Technology	Wired
Data Transfer Rate	100 Mbps
Data Link Protocol	Ethernet, Fast Ethernet, serial
Network / Transport Protocol	TCP/IP
Remote Management Protocol	HTTP
Status Indicators	Port status, power
Features	Full duplex capability, manageable
Compliant Standards	IEEE 802.3, IEEE 802.3U
Expansion / Connectivity
Interfaces	2 x serial - RS-232 - 9 pin D-Sub (DB-9) - 2 1 x serial - RS-422/485 - 9 pin D-Sub (DB-9) - 1
Connections	1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
Power
Power Device	Power supply - external
Voltage Required	AC 110/220 V ± 10% ( 50/60 Hz )
Software / System Requirements
Software Included	Drivers & Utilities
Manufacturer Warranty
Service & Support	1 year warranty
Service & Support Details	Limited warranty - parts and labor - 1 year - carry-in
Environmental Parameters
Min Operating Temperature	41 °F
Max Operating Temperature	122 °F
Humidity Range Operating	8 - 80%
