Product Description:

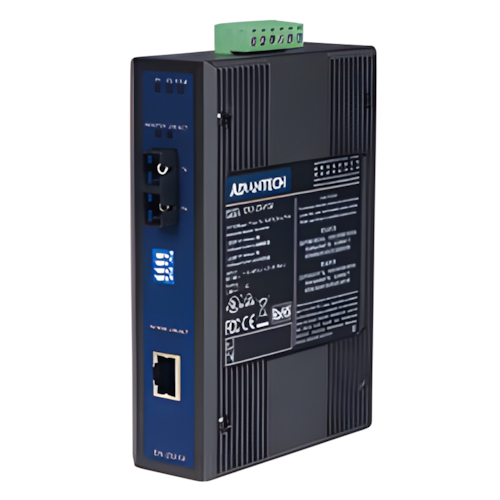

EKI-2541M is designed to convert Ethernet networks to fiber networks by
transparently converting Ethernet signals to optic signals. The
advantages of fiber optics are wide bandwidth, EMI immunity and
long-distance transmission capability. Therefore, EKI-2541M is an ideal
solution for “fiber to building” applications at central offices or
local sites.
EKI-2541M supports MDI/MDIX auto detection, so you
don’t need to use crossover wires. Furthermore, the EKI-2541M can work
normally from -10 ~ 60° C and accepts a wide voltage range from +12
~
48 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection
against over-voltage, so it is suitable for harsh operating
environments.
Features
- Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
- Provides 1 x 100 Mbps multi-mode SC type fiber port
- Provides internal jumper for Link Fault Pass-through (LFP) setting
- Supports full/half duplex flow control
- Supports store and forward transmission
- Supports auto-negotiation
- Supports MDI/MDI-X auto crossover
- Provides surge (EFT) protection 3,000 VDC for power line
- Supports 4,000 VDC Ethernet ESD protection
- Supports +12-48 VDC power input
- Provides flexible mounting: DIN-rail & Panel Mounting
- Supports Operating Temperature from -10 ~ 60° C
Specifications
General |
Ethernet Connectors |
1 x RJ-45
1 x SC type fiber connector |
Mounting |
DIN-rail, Wall |
I/O |
Transmission Distance |
Ethernet: Up to 100 m
Multi-mode Fiber: Up to 2km
Fiber: Single-mode: up to 30 km |
Operating System |
Operating Temperature |
-10 ~ 60°C (14 ~ 140°F) |
Power Supply |
Power Connector |
6-pin removable
screw terminal |
Power Input |
2 x Unregulated
12 ~ 48 VDC |
|
