Product Description:

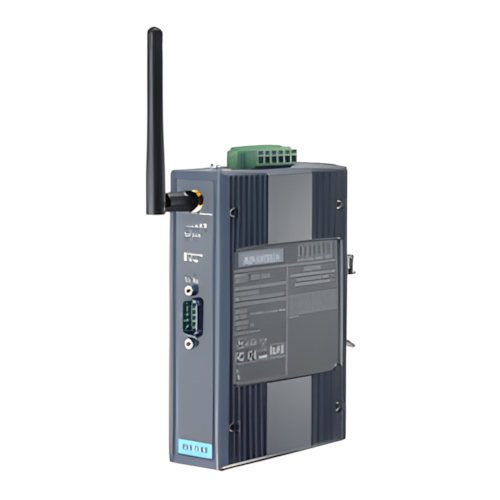

EKI-1351 and EKI-1352
are wireless serial device servers that bring RS-232/422/485 to
wireless Ethernet. They allow nearly any device with serial ports to
connect and share an Wireless Ethernet network. EKI-1351 and EKI-1352
provide a quick, simple and cost-effective way to bring the advantages
of remote management and data accessibility to thousands of devices
that cannot connect to a network.
With EKI-1351 and EKI-1352,
your existing serial devices can be used with the most popular
operating systems on the market. There is no need to write special
drivers for specific operating systems. Moreover, you can make serial
devices communicate with other devices peer-to-peer, without any
intermediate host PCs and software programming. That saves a lot of
cost and effort. In addition, you can actively request data or issue
commands from the RS-232/422/485 side or Wireless Ethernet side. This
data can be sent bilaterally. Thus, the EKI-1351 and EKI-1352 are
especially suitable for remote monitoring environments such as security
systems, factory automaton, SCADA, transportation and more.
- Link any serial device to an IEEE 802.11 b/g network
- Supports wireless LAN Ad-Hoc and Infrastructure modes
- Provides COM port redirection, TCP, UDP, and pair connection modes
- Supports baud rate up to 921.6 kbps
- Provides Web-based configuration and Windows utility
- Allows a max. of 5 hosts to access one serial port
- Supports Windows 2000/XP/Vista drivers
- Allows a max. of 4 hosts to be accessed as TCP client mode
- Built-in 15 KV ESD protection for all serial signals
- Supports DHCP protocol
| Connector |
Ethernet |
SMA |
| Serial |
DB9 |
| Ethernet |
Interface |
802.11b/g |
| Ports |
1 |
| Serial |
Ports |
1 |
| Type |
RS-232/422/485 |
| Software |
Baud Rate |
50 ~ 921.6 Kbps |
| Driver |
Windows 2000/XP/Vista |
| Operating Mode |
Virtual COM, Data Mode, Control Mode |
|
