Product Description:

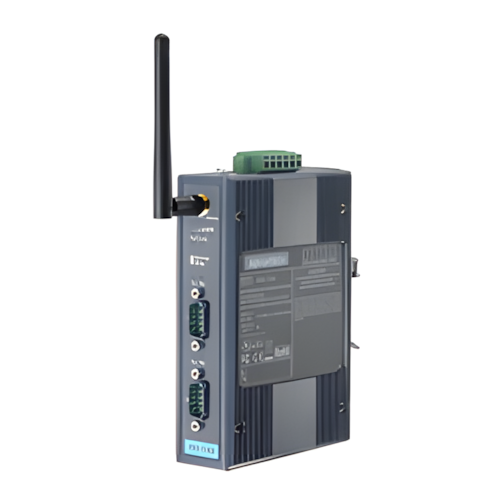

EKI-1351 and EKI-1352 are wireless serial device servers that bring
RS-232/422/485 to wireless Ethernet. They allow nearly any device with
serial ports to connect and share an Wireless Ethernet network.
EKI-1351 and EKI-1352 provide a quick, simple and cost-effective way to
bring the advantages of remote management and data accessibility to
thousands of devices that cannot connect to a network.
With
EKI-1351 and EKI-1352, your existing serial devices can be used with
the most popular operating systems on the market. There is no need to
write special drivers for specific operating systems. Moreover, you can
make serial devices communicate with other devices peer-to-peer,
without any intermediate host PCs and software programming. That saves
a lot of cost and effort. In addition, you can actively request data or
issue commands from the RS-232/422/485 side or Wireless Ethernet side.
This data can be sent bilaterally. Thus, the EKI-1351 and EKI-1352 are
especially suitable for remote monitoring environments such as security
systems, factory automaton, SCADA, transportation and more.
- Link any serial device to an IEEE 802.11 b/g network
- Supports wireless LAN Ad-Hoc and Infrastructure modes
- Provides COM port redirection, TCP, UDP, and pair connection modes
- Supports baud rate up to 921.6 kbps
- Provides Web-based configuration and Windows utility
- Allows a max. of 5 hosts to access one serial port
- Supports Windows 2000/XP/Vista drivers
- Allows a max. of 4 hosts to be accessed as TCP client mode
- Built-in 15 KV ESD protection for all serial signals
- Supports DHCP protocol
Connector |
Ethernet |
SMA |
Serial |
DB9 |
Ethernet |
Interface |
802.11b/g |
Ports |
1 |
Serial |
Ports |
2 |
Type |
RS-232/422/485 |
Software |
Baud Rate |
50 ~ 921.6 Kbps |
Driver |
Windows 2000/XP/Vista |
Operating Mode |
Virtual COM, Data Mode, Control Mode |
|
