Product Description:
The WebDT 515 and 517 digital terminals integrate vivid displays with efficient computing in one slim, mountable design. The WebDT 515 and 517 feature the integration of bright 15" and 17" LCD displays, respectively, over an efficient and powerful x86 1.5GHz-powered thin client platform, with optional IR touch screen, internal wireless communication, magnetic stripe reader. The full-featured yet elegant, space-saving package accommodates a range of accessories and peripherals to support a wide variety of vertical applications.
- Support for Windows® XP Embedded or Windows® XP Professional
- Integrates major thin-client/server computing protocols (Citrix ICA, Microsoft RDP), terminal emulation suite; and web browsers
- Comprehensive and intuitive remote device administration through server-based WebDT Device Manager software
- Configurable for thin-client/server computing, browser-based computing, or local application shell
- Comprehensive set of USB and full legacy I/O ports for peripherals and accessories
- VESA-mountable for flexibility in mounting and deployment
- Options for IR touch screen
- Optional integrated 802.11 a/b/g wireless LAN adapter
- Options for magnetic card reader
| |
Item |
WebDT 515 |
WebDT 517 |
| System |
Display |
15" TFT LCD |
17" TFT LCD |
| Display Resolution |
1024 x 768 |
1280 x 1024 |
| Processor |
x86 1.5 GHz |
| RAM |
1GB |
| Storage |
2GB, 4GB, 8GB or 16GB flash module; 2.5" HDD |
| Operation System |
Microsoft® Windows® XP Embedded;
Windows® XP Professional |
| Network Interface |
Ethernet 10/100 MB Base-T LAN;
802.11b/g or 802.11a/b/g WLAN |
| I/O Ports |
1 Serial port, 4 USB 2.0 ports, RJ45 connector for Ethernet, 1 Audio-out jack,1 Microphone-in jack, 1 Line-in jack, and 1 DC-in jack |

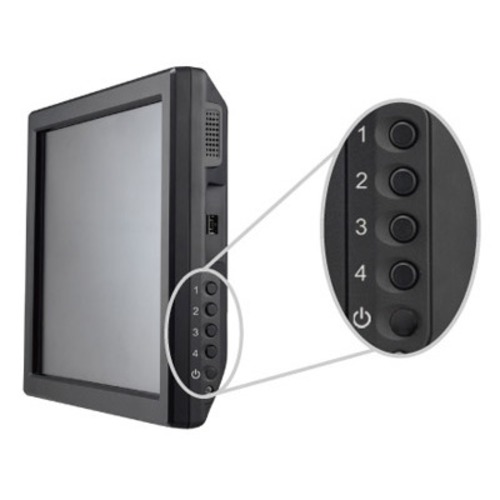

| Control Buttons |
Five side buttons -
1 power button and 4 programmable buttons |
| Power |
AC/ DC Adapter |
Input: 100 - 240V AC; Output: 18.5V DC, 3.5A |
| Power Cords |
North America, EU, UK, China |
| Mechanical |
Enclosure |
ABS + PC Plastic |
| Dimensions With Base Stand
(H x W x D) |
356 x 354 x 171mm/
14 x 13.9 x 6.7 in |
409 x 388 x 171mm/
16.1 x 15.3 x 6.7 in |
| Dimensions Without Base Stand
(H x W x D) |
278 x 354 x 63mm/
10.9 x 13.9 x 2.5 in |
320 x 388 x 68mm/
12.6 x 15.3 x 2.7 in |
| Environmental |
Water and Dust Resistance |
IP65 sealed front IR Touch panel.
(Not applicable for non-IR sku) |
| Regulatory |
FCC Class B, CE, C-tick, RoHS compliant |
| Operating Temperature |
0° - 40°C |
| Humidity |
0% - 90% non-condensing |
|
