IBASE Technology
ITX, LGA775 for Core2Quad, Q35+ICH9, VGA, 82562V 10/100 LANx1 + 88E8053 GbE LANx1, PCIe(16x), (RoHS)

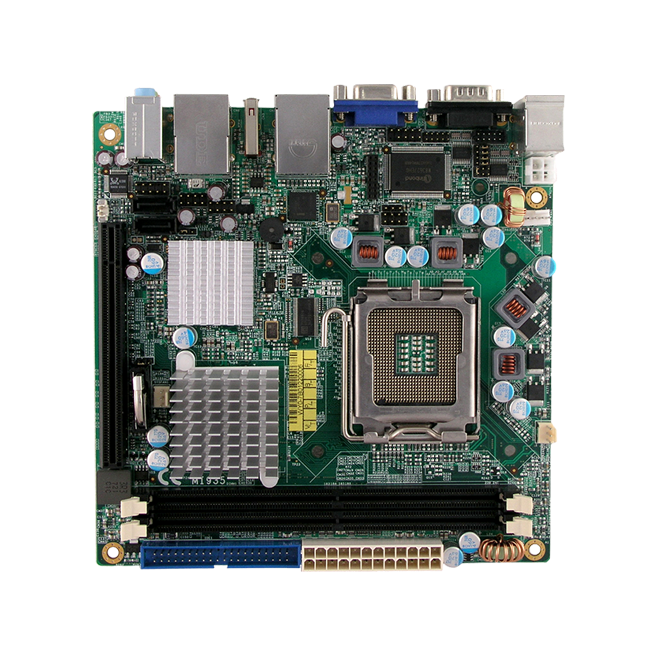

1356996_IBASE_Technology_MI935_1.png-
Manufacturer IBASE Technology
Mfg. Part # MI935
ITEM# 911178
Unit Price $261.00 (~CAD$325.34)
Availability Back Order
[ Get notified when product becomes available. ]
Buy


Shipping and Handling:
 INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation

No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]
[ View Detail Product Info ]


Product Description:
LGA775 Intel® CoreT2 Quad Mini-ITX Motherboard
  • Supports Intel® Core™2 Quad / Core™2 Duo / Celeron® 400 Sequence processors (Conroe-L)
  • Up to 3.8GHz, 800MHz/1066MHz/1333MHz
  • DDR2 DIMM x2, Max. 4GB
  • 10/100 LAN with PCI-E Gigabit LAN, optional 1x PCI-E Gigabit LAN
  • Integrated Q35 VGA for CRT
  • 8x USB 2.0, 2x SATA II, 2x COM, optional 1x eSATA, 4x COM (ID394)
  • 1 x PCI-E(x16) for secondary VGA support
SPECIFICATIONS

CPU Socket
LGA775

CPU
Intel® Core™2 Duo, Intel®Core™2 Quad, Intel® Celeron® 400 Sequence processor
Up to 3.8GHz

CPU Front Side Bus ( FSB )
800MHz / 1066MHz / 1333MHz

Chipset
Intel® Q35 Chipset
ICH9 (ICH9R for MI935RF)

BIOS
Award BIOS, ACPI supported

System Memory
Two DDR2 sockets, up to 4GB DDR SDRAM
667/800MHz DDRII SDRAM, w/o ECC

Integrated VGA
Q35 chipset built-in
Supports CRT interface
Shared memory, max. 384MB

LAN
Intel 82562V 10/100 BaseT (MI935) or Intel 82566DM Gigabit LAN (MI935F/RF) for LAN1 and Marvel PCI-E Gigabit LAN (for MI935F/RF)
RJ-45 on board

Audio
ICH9/ICH9R built-in audio + AC97 codec
(Line out, Line, Mic jacks on board)

LPC I/O
W83627EHG chipset supports COM1 (RS232), COM2 (RS232/422/485), Hardware Monitor

Serial ATA Interface
2x SATA II ports, 3Gb/s
Optional eSATA or RAID 0, 1 (MI935RF)

PATA Interface
JMicro JMB368 PCI-E to PATA controller for one PATA channel supporting (40-pin IDE) 2 IDE devices featuring UDMA33/66/100

Serial Ports
1x RS-232/422/485 and 1x RS-232 ports

USB
8 USB 2.0 ports (4 on board, 4 via pin header)

Digital I/O
4 in / 4 out

Watchdog Timer
Generates system reset; 256 levels

Hardware Monitoring
Monitors system/CPU temperature and voltage status

Expansion Slots
1 x PCI-E (x16)

Edge Connectors
PS/2 keyboard and mouse
VGA CRT
RJ-45
Audio jacks
4 USB ports
Serial Port (COM1)

Power Connector
ATX, 24-pin

Form Factor
Mini-ITX

Dimensions
170mm x 170mm (6.7" x 6.7")

Power Consumption
TBC

Operating Temperature:
0°C~60°C (32°F~140°F)

Storage Temperature:
-20°C~80°C (-4°F~176°F)

Relative Humidity:

10%~90% (non-condensing)
