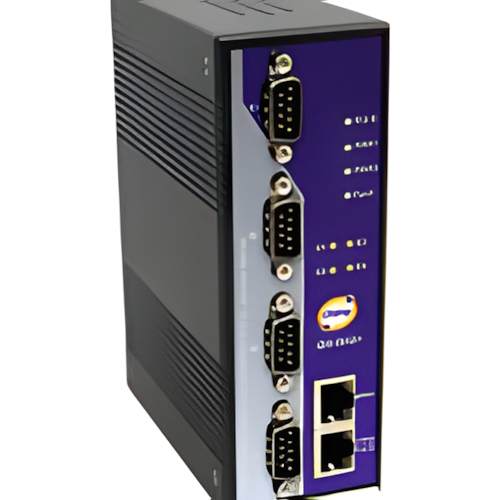

Product Description:
IDS-5042 is an innovative 4 port RS232/422/485 to 2 ports LAN redundant
device server. To assure the agility and security of critical data,
IDS-5042 offers many powerful features for HW & SW redundant
functions. When the connection between master-link and LAN fails,
IDS-5042 can automatically switch to another LAN port within 10mS, and
still guarantees a non-stop connection. IDS-5042 also supports switch
mode, users can use Daisy Chain to reduce the usage of Ethernet switch
ports. Secondly, IDS-5042 can simultaneously transfer data into 5 host
PCs. This feature can assure all critical data that saved in different
host PC to avoid Ethernet break or host PCs failure. Thirdly, IDS-5042
provides dual redundant power inputs on DC power jack and terminal
block. IDS-5042 also provides NAT pass through function so that users
are able to manage IDS-5042 inside or outside the NAT router. It is
easy for different IP domain users to use IDS-5042. In addition,
IDS-5042+ also support P.O.E. PD on ETH2. This feature is fully
compliant with IEEE802.3af standard. Therefore, IDS-5042 is one of the
best communication redundant solutions for application of serial
devices.
Features
- Dual redundant Ethernet port support redundant mode (Recovery
time < 10ms)
- Ethernet switch mode enable Daisy Chain
- Redundant 5 multiple host devices supported to protect your
industrial network
- Versatile modes & event alarm by e-mail
- HTTPs & SSH protocol supported for secured management
- NAT router pass through
- IP table to prevent access from unauthorized IP address
- Configurable by Web-based and Windows utility (DS-Tool)
- 1KV isolation for PoE PD port of IDS-5042+
- Dual redundant DC power inputs of terminal block
- Rigid IP-30 housing design
- DIN-Rail and panel mounting enabled
Specifications
| ORing Device Server
Model |
IDS-5042 |
IDS-5042+
|
Physical Ports
|
10/100Base-T(X) Ports in RJ45
Auto MDI/MDIX
|
2
|
P.O.E. Feature
|
|
P.O.E.Present at ETH2
Power Device (IEEE 802.3af): IEEE 802.3af compliant input interface
Power consumption: 8Watts max.
Over load & short circuit protection
Isolation Voltage: 1000 VDC min.
Isolation Resistance : 108 ohms min
|
Serial Ports
|
Connector
|
DB9 x 4
|
Operation Mode
|
RS232 /
RS422 / 4(2)-Wire RS485. Which can be configured by DS-Tool
|
Serial Baud Rate
|
110 bps
to 460.8 Kbps
|
Data Bits
|
5, 6, 7,
8
|
Parity
|
odd,
even, none, mark, space
|
Stop Bits
|
1, 1.5, 2
|
RS-232
|
TxD,
RxD, RTS, CTS, DTR, DSR, DCD, RI, GND |
RS-422
|
Tx+,Tx-,
Rx+, Rx-,GND
|
RS-485 (4-wire)
|
Tx+,Tx-,
Rx+, Rx-,GND
|
RS-485 (2-wire)
|
Data+,
Data-,GND
|
Flow Control
|
XON/XOFF,
RTS/CTS, DTR/DSR
|
LED
indicators
|
Power indicator
|
PWR 1(2)
/ Ready:
Red On: Power is on and booting up.
Red Blinking: Indicates an IP conflict, or DHCP or BOOTP server did not
respond properly.
Green On: Power is on and functioning Normally.
Green Blinking: Located by Administrator.
|
10/100TX RJ45 port indicator
|
Green
for port Link/Act at 100Mbps. Yellow for port Link/Act at 10Mbps. |
| Serial TX / RX LEDs: |
Red:
Serial port is receiving data
Green: Serial port is transmitting data
|
Power
|
Redundant Input power
|
Dual DC
inputs. 12-48VDC on 6-pin terminal block
|
Power consumption (Typ.)
|
5.5 Watts
|
Overload current protection
|
Present
|
Reverse polarity protection
|
Present
on terminal block
|
Physical Characteristic
|
Enclosure
|
IP-30
|
Dimension (W x D x H)
|
52(W)x106(D)x144(H)
mm (2.05x4.17x5.67 inch.)
|
Environmental
|
Storage Temperature
|
-40 to
85°C (-40 to
185°F)
|
Operating Temperature
|
-10 to
60°C (14 to 140°F)
|
Operating Humidity
|
5% to
95% Non-condensing
|
Regulatory approvals
|
EMI
|
FCC Part
15, CISPR (EN55022)
class A
|
EMS
|
EN61000-4-2
(ESD), EN61000-4-3
(RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),
EN61000-4-8, EN61000-4-11
|
Shock
|
IEC60068-2-27
|
Free Fall
|
IEC60068-2-32
|
Vibration
|
IEC60068-2-6
|
Safety
|
EN60950
|
Warranty
|
5 years
|
|
