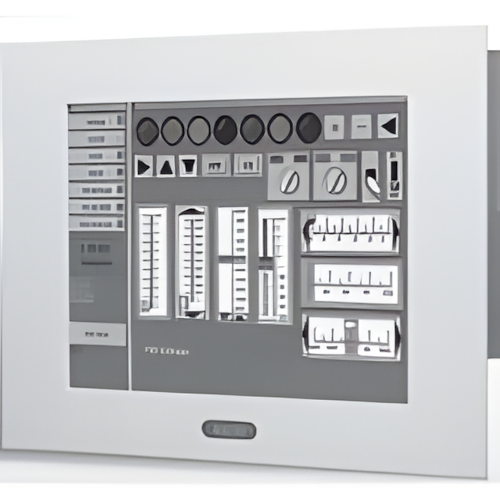

Product Description:
| Main Feature |
- 17" SXGA
color TFT LCD display
- Stainless
steel open-frame architecture
- Front Panel
with bezel is IP65 certified
- OSD (On
Screen Display) function for display adjustment
- Strengthened
glass protects the screen from shock damage
- Analog RGB
signal direct input offering multi-scan function
- RGB,
Composite video, S-video input signal selectable
- Picture-In-Picture
function enable
- VESA 75/100mm
standard screw holes
- Resistive
touch screen (optional)
- Aluminum
front bezel (optional)
|
Specification
General
Information
- Construction
Heavy-duty stainless steel chassis
- Front Panel
Color
- Mounting
Panel and Rear mount
Optional:Standard mount frame
Rack mount
Swivel ARM
- Input Signal
RGB, Composite Video, S-video
- Control
OSD (On Screen Display) on rear panel
- Power Supply
External power adapter
- OS Support
MS DOS
Windows 98/SE
Windows 2000
Windows XP
- Dimensions (W
x H x D)
482 x 398 x 57.2 mm (19" x 15.7" x 2.3")
- Carton
Dimensions (W x H x D)
620 x 615 x 251 mm (24.4" x 24.2"x 9.8")
- Gross Weight
15.36 Kg (33.7 lbs)
LCD
Specifications
- Model
OPD-217A
- Display type
17" TFT color LCD
- Max.
Resolution
1280 x 1024
- Max. Color
256K
- Dot Size (mm)
0.264 x 0.264
- Luminance
(cd/m2)
260 (TYP)
- Viewing Angle
160?(H)
160?(V)
- Temperature
0?C ~ 45?C (32?F ~ 113?F)
- OSD
Yes
- Back Light
MTBF (Hrs)
40,000
Environmental
Specifications
- Operating
Temperature
0?C ~ 45?C (32?F ~ 113?F)
- Storage
Temperature
-20?C ~ 60?C (-4?F ~ 140?F)
- Storage
Humidity
10 to 90% @ 40?C,
non-condensing, without touchscreen
- Vibration
5 ~ 500Hz, 1G random vibration
- Shock
15G peak acceleration (11 msec. duration)
- EMC
CE/FCC Class A
Touchscreen
(optional)
- Type
8-wire, analog resistive
- Resolution
4096 x 4096
- Light
Transmission
76% +/- 2
|
