Product Description:

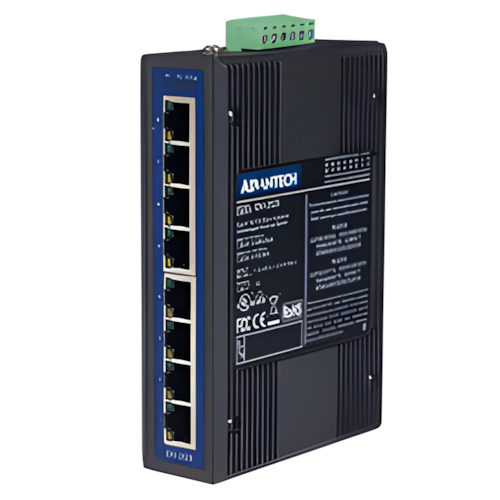

The EKI-2528 comes equipped with all the standard features of the EKI
family. Furthermore, it offers a +12 ~48 VDC redundant power input
design, and is secured with a double protection mechanism; Power
Polarity Reverse Protect and an Overload Current Reset-able Fuse. The
former tolerates reverse power wiring (devices will not be damaged if
the plus and minus power cables are mixed, even continuing to operate
normally. The later secures the system from overload currents; when the
power supply turns normal, EKI-2528 will automatically get back to
work. Each port of EKI-2528 has 2 LED’s to show the link status
transmission speed and collision status. It also provides a relay
output for an event alarm. In the event of a power failure, the
built-in LED will activate the alarm to notify administrators.
Engineers can simply verify the hardware status by checking the LED,
and have troubleshooting easy and quick. EKI-2528 comes with compact
metal housing that rates IP30 to help against from dusty industrial
environments.
Features
- Provides 8 Fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100Mbps Auto Negotiation
- Provides broadcast storm protection
- Supports 4,000 VDC Ethernet ESD protection
- Provides surge (EFT) protection 3,000 VDC for power line
- Provides Slim size, DIN Rail/Wall Mount with IP30 metal mechanism
- Supports Redundant 12 ~ 48 VDC power input and P-Fail Relay
- Supports Operating Temperature from -10 ~ 60° C
Specifications
| General |
Ethernet Connectors |
8 x RJ-45 |
| Mounting |
DIN-rail, Wall |
| I/O |
Transmission Distance |
Up to 100 m |
| Transmission Speed |
UP to 100 Mbps |
| Operating System |
Operating Temperature |
-10 ~ 60°C (14 ~ 140°F) |
| Power Supply |
Power Connector |
6-pin removable
screw terminal |
| Power Input |
2 x Unregulated 48 VDC |
|
