Product Description:

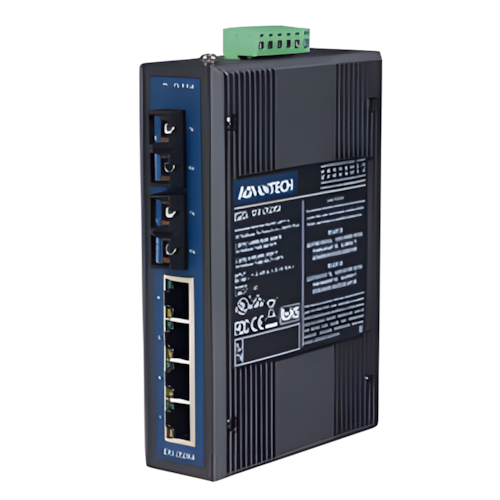

EKI-2525M/2526M/2526S are industrial-grade Ethernet switches that
enable you to expand your industrial network fast and cost-effectively.
The EKI-2525M/2526M/2526S have four 10/100Mbps Ehernet ports, and
additionally the EKI-2525M/2526M provides one or two multi-mode
fiber-optic ports, while the EKI-2526s provides two single-mode
fiber-optic ports. Using fiber-optic, you can prevent noise from
interfering with your system and supports high-speed (100 Mbps) and
high-distance (up to 30 km) transmissions.
EKI-2525M/2526M/2526S
haveindustrial-grade designs, assuring high reliability and stability
in harsh environments, making it a robust bridge between enterprise
fiber-optic backbones and Ethernet devices. EKI-2525M/2526M/2526S
inclubes a switch controller that can automatically sense transmission
speeds. The RJ-45 interface can also be auto-Detected, so MDI or MDI-X
is automatically selected and a crossover cable is not required. All
the Ethernet prots have memory buffers that support the store and
forward mechanism, assuring all data is transmitted properly.
Features
- Provides 4 x 10/100 Mbps Ethernet ports with FJ-45 connector
- Provides 1 x 100 Mbps multi-mode SC type fiber port
- Provides 2 x 100 Mbps multi-mode SC type fiber-optic port
- Provides 2 x 100 Mbps single-mode SC type fiber-optic port
- Supports full/half duplex flow control
- Supports MDI/MDI-X auto crossover
- Provides 3,000 VDC surge (EFT) protection
- Provides 4,000 VDC Ethernet ESD protection
- Provides broadcast storm protection
- Provides Redundant 12 ~ 48 VDC power input
- Provides flexible mounting: DIN-rail Panel mounting
Specifications
General |
Ethernet Connectors |
4xRJ45 + 2xSC
type fiber connector |
Mounting |
DIN-rail, Wall |
I/O |
Transmission Distance |
Ethernet: Up to 100m
Multi-mode Fiber:Up to 2 km |
Transmission Speed |
UP to 100 Mbps |
Operating System |
Operating Temperature |
-10 ~ 60°C (14 ~ 140°F) |
Power Supply |
Power Connector |
6-pin removable
screw terminal |
Power Input |
2 x Unregulated
12 ~ 48 VDC |
|
