Product Description:

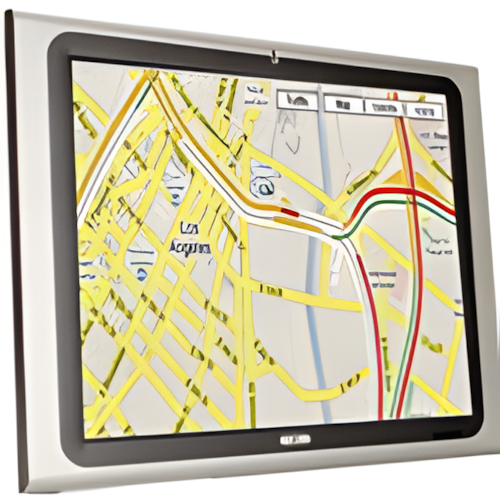

19" LCD Panel PC,W/ Intel 915GM+Pentium M 1.6GHz w/ 1MB cache,802.11b/g,Bluetooth,1GB,RESOLUTION T/S
- 19" TFT LCD with resistive touch screen
- System memory up to 2 GB SDRAM
- Built-in 802.11b/g (802.11 a/b/g/n)Wireless LAN
- Built-in Bluetooth module
- Built-in two 3 W speakers
- Built-in HSDPA module for mobile connection
- One compact flash slot
- IP 64 compliant front panel
LCD Size |
19" |
Max
Resolution |
1280 x 1024 |
Brightness
(cd/m2) |
300 |
Contrast
Ratio |
800:1 |
LCD Color |
16.7M |
Pixel Pitch
(mm) |
0.294(H) x 0.294(V) |
Viewing
Angle (H-V) |
160(H) / 160(V) |
Backlight
MTBF |
50000 hrs |
SBC Model |
AFLMB-9152 |
CPU |
Intel® Pentium®
M Processor (up to 2.0GHz) IntelR CeleronR M processor |
Chipset |
Intel® 915GME |
I/O Ports
and Switches |
1x External SATA
1 x RS-232 COM port
1 x RS-232/422/485 COM port
2 x RJ-45 for GbE
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x VGA port
1 x Audio |
SSD |
CF Type II |
Watchdog
Timer |
Software programmable
supports 1-255 sec. system reset |
Audio |
AMP 3W + AMP 3W |
Expansion |
1 x PCIe mini card
(802.11 b/g)(Wireless LAN Module),
1 x Bluetooth Module(USB Interface, Bluetooth V2.0) |
HDD Drive Bay |
1 x 2.5" SATA HDD bay |
Optional
GPRS Module (support GSM 850, EGSM900, DCS 1800 & PCS, 1900) |
Yes |
Construction
Material |
ABS + PC Plastic front
frame |
LED Function |
1 x Power ON/OFF LED on
front panel |
Mounting |
Panel, Wall, Rack, Stand
and Arm (VESA 100mm x 100mm) |
Front Panel
Color |
Silver |
Dimension
(WxHxD) (mm) |
470x 383 x 78.4 |
Operation
Temperature |
0°C~40°C with
HDD
0°C~45°C with CF card or SATA interface 2.5" SSD HDD. |
Storage
Temperature
|
-20°C~60°C |
EMC |
CE, FCC, CCC |
IP
Level(front panel) |
IP 64 |
Safety |
UL, CB |
Touch Screen |
Resistive Type
5-Wire(touch controller IC is on board) |
Power Adapter |
Power: 84W
Input: 90VAC~264VAC@50/60Hz
Output: 12VDC |
Power
Requirement |
12VDC |
Power
Consumption |
82W |
|
