Product Description:

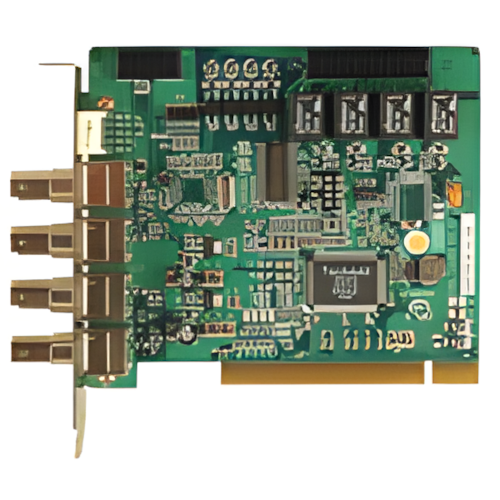

PCI video/audio capture card with four video input channels, total 30
fps@720x480(NTSC), and one audio input channel
- 10 W only ultra low power consumption
- No thermal issues, no heat sink required
- Best Video quality with 10-bit ADC and 4H composite for NTSC /PAL
/ SECAM auto sensing
- 10-bit ADC for Analog Sound digitizing for better audio quality
- 30 fps @ D1 per channel, for entry level surveillance market
- One channel audio capturing, channel selectable by software
- Eight GPIO relay channels (4 in / 4 out) on board, included I/O
kit & cable
- Support Multiple Card ( maximum 64 ports video input and 16 ports
audio input )
- Windows 2000, XP and Linux kernel 2.6 drivers available
- Applications: Video surveillance, security, public
transportations,police and government
| Video input |
4 channels composite
video
NTSC, PAL and SECAM auto sensing |
| Video input
Type |
BNC |
| Audio Input |
1 channel analog audio
Active channel selectable by software |
| Audio Input
Type |
Audio kit with 3.5 mm
audio jack connector |
| PCI interface |
PCI 2.1 compliance |
| CARD ID |
Selectable with LED for
ID indication |
| Alarm I/O |
GPIO daughter board with
4 inputs and 4 outputs |
| Device Driver |
Windows 2000, XP, Linux
kernel 2.6 |
| SDK |
Provide SDK and demo
program with sample source code in C++ |
| Video engine |
1 x Techwell 6802/6805 |
| Resolution |
NTSC: 720 x 480 / 720 x
240 / 640 x 480 / 640 x 240 / 320 x 240 / 160 x 120
PAL / SECAM: 720 x 576 / 720 x 480/ 720 x 288 / 640 x 240 / 352 x 288 /
320 x 240 / 176 x 144 / 160 x 120 |
| Frame rate |
NTSC: Four video
channels with 30 fps @ D1 per channel
PAL and SECAM: Four video channels with 25 fps @ D1 per channel |
| Multiple
Card Support |
| Card |
Video Port |
Audio Port |
Support max. Channel / Resolution |
Total Frame(NTSC/PAL) |
| 1 |
4 |
1 |
4 channels, D1(720 x 480) |
30 / 25 fps |
| 4 |
16 |
4 |
16 channels, D1(720 x 480) |
120 / 100 fps |
| 8 |
32 |
8 |
32 channels, QVGA(320 x 240) |
240 / 200 fps |
| 16 |
64 |
16 |
64 channels, QVGA(320 x 240) |
240 / 200 fps |
|
| System |
x86 compatible computer |
| Graphic |
DirectX compatible VGA
card supporting YUV overlay mode |
| Dimensions |
11 9.91 mm x 106.68 mm |
| Operation
temperature |
0°C~60°C
(32°F~140°F ), non-condensing |
| Power
consumption |
10W, 2A@5V (with relay) |
|
