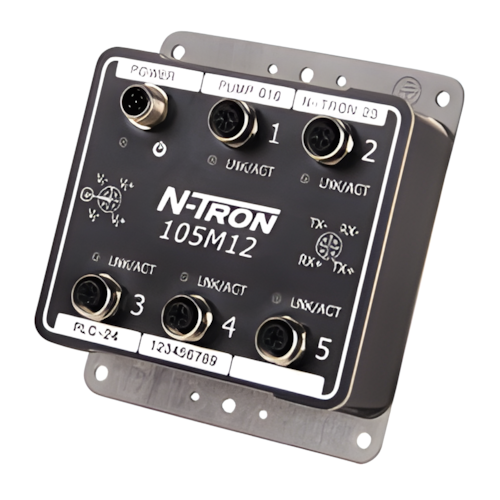

Red Lion Controls N-Tron IP67 Rated 5 port 10/100BaseTX Industrial Ethernet Switch with M12 D-Coded Female 4-Pin Connectors, Bulkhead Mountable

Manufacturer Red Lion Controls Mfg. Part # 105M12 ITEM# 826248 Unit Price $683.98 (~CAD$852.59) Availability In Stock Buy

Shipping and Handling: Singular Select... Regular [6-9 Business Days] -- $65.3[CAD$81.4] Priority [4-6 Business Days] -- $107.8[CAD$134.38] Extreme [2-4 Business Days] -- $156[CAD$194.46]  INTERNATIONAL GROUND SHIPPING: For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation No other hidden fees will be collected from you when packages arrive. Guaranteed [ Detailed Explanation ]

Direct Manufacturer Warranty Item: For any technical support, RMA service, please contact the Manufacturer directly from the date of purchase. In order to serve you better, Manufacturer requires all the service must go directly through them. For peace of mind and to reduce your down time, check out our HOT SWAP Express Warranty.

[ View Detail Product Info ]

Product Description: The 105M12 is an IP67 rated unmanaged Industrial Ethernet Switch. It is housed in a hardened, metal, bulkhead mountable enclosure rated for protection against dust, low/ high pressure water jets, and temporary immersion in water. This switch offers five 10/100BaseTX ports with M12 Dcoded connectors and is designed for use in mission critical data acquisition, control, and Ethernet I/O applications. Features: Unmanaged Operation IP67 Rated Hardened Metal Enclosure Bulkhead Mountable (Optional DIN-Rail mounting) Dustproof Protection Against low/high Pressure Water Jets Temporary Immersion in Water Five10/100BaseTX Ports M12 D-Coded Female 4 Pin Connectors Extended Environmental Specifications -40º to 80ºC Operating Temperature >2M Hours MTBF Store-and-forward Technology Supports Full/Half Duplex Operation Up to 1.0 Gb/s Maximum Throughput MDIX Auto Sensing Cable Auto Sensing Speed and Flow Control Full Wire Speed Communications Redundant Power Inputs (10-30 VDC) ESD Protection Diodes on All Ports Surge Protection Diodes on Power Inputs LED Link/Activity Status Indication Specificaations Physical Height: 5.00" (12.7 cm) Width: 4.32" (10.97 cm) Depth: 2.09" (5.31 cm) Electrical Input Voltage: 10-30 VDC Steady Input Current: 215mA@24V Inrush: 7.8Amp/0.7ms@24V Environmental Operating Temperature: -40oC to 80oC Storage Temperature: -40oC to 85oC Operating Humidity: 5% to 100% (Non Condensing) Operating Altitude: 0 to 10,000 ft. Reliability MTBF: >2 Million Hours Network Media 10BaseT: >Cat3 Cable 100BaseTX: >Cat5 Cable Connectors 10/100BaseTX: Five (5) M12 D-Coded, 4 Pin Female Ports Power: One (1) M12 A-Coded, 5 Pin Male Port Recommended Wiring Clearance Front: ˜4" (10.16 cm)

[Disclaimer for Product Information]
