Product Description:

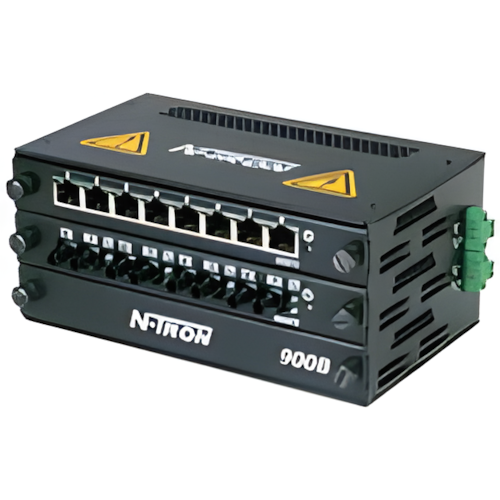

The N-TRON 900B Modular Industrial Ethernet
Switch offers outstanding performance, ease of use,
and flexible expansion options. It is ideally suited for
connecting Ethernet enabled industrial equipment such
as PLC's, Industrial PC's, Ethernet I/O and Data
Acquisition Equipment.
Features:
- Full IEEE 802.3 Compliance
- Rugged Steel DIN-Rail or Panel Mount
Enclosure (rackmount kit available)
- Extended Environmental Specifications
- -20º to 70º C Operating
Temperature
- Up to twentyfour 10/100BaseTX RJ45 Ports
or twelve 100BaseFX Ports (ST or SC)
- three Slots for Plug-In Modules - mix
and match in any combination
- Autosensing speed, MDIX, and full-half
duplex
- Plug and Play Operation
- Redundant Power Inputs (10 to 30 VDC)
- Up to 4.8Gb/sec aggregate bandwidth
Specifications:
Physical
- Height: 3.2" (8.13 cm)
- Width: 7.1" (18.03 cm)
- Depth: 4.1" (10.41 cm)
(note: can be mounted horizontally or vertically)
Electrical
- Input Voltage: 10-30 VDC (Redundant Inputs)
- Input/Inrush Current: 200/400mA@24V per backplane
- Input/Inrush Current: 250/500mA@24V per 908TX module
- Input/Inrush Current: 400/800mA@24V per 902/904FX module
Environmental
- Operating Temperature: -20oC to 70oC
- Storage Temperature: -40oC to 85oC
- Operating Humidity: 10% to 95% (Non Condensing)
- Operating Altitude: 0 to 10,000 ft.
Shock and Vibration (bulkhead mounted)
- Shock: 200g @ 10ms
- Vibration: 1g, 10-500Hz, 3 axis
- Seismic: 20g, 5-200Hz, 15s
Reliability
- MTBF: >2M Hours (measured)
Network Media
- 10BaseT: >Cat3 Cable
- 100BaseTX: >Cat5 Cable
- 100BaseFX
- Multimode: 50-62.5/125μm
- Singlemode: 7-10/125μm
Fiber Transceiver Characteristics
Fiber Length
|
2km* |
15km** |
40km** |
80km** |
TX Power Min
|
-19dBm |
-15dBm |
-5dBm |
-5dBm |
RX Sensitivity Max
|
-32dBm |
-29dBm |
-34dBm |
-34dBm |
Wavele ngth
|
1310nm |
1310nm |
1310nm |
1550nm |
* Multimode
Fiber Optic Cable ** Singlemode Fiber Optic Cable
Recommended Wiring Clearance:
- Front TX / (FX): 2" (5.08 cm) / 4" (10.16 cm)
- Side: 1" (2.54 cm)
Ordering Information
- 900B Industrial Ethernet switch chassis with 3 slots for optional
expansion modules
- 900B-N with N-View Firmware Option
- 900B-FP Filler Panel
- 900B-PM Panel Mount Kit
- 900-RM 19" Rackmount Kit
- 908TX Eight ports 10/100BaseTX (RJ-45)
- 902FX-XX Two ports 100BaseFX multimode fiber
- 902FXE-XX-YY Two ports 100BaseFX singlemode fiber
- 904FX-XX Four ports 100BaseFX multimode fiber
- 904FXE-XX-YY Four ports 100BaseFX singlemode fiber
Where "XX" is:
- ST for ST style fiber connector
- SC for SC style fiber connector
Where "YY" is:
- 15 for 15km max. fiber segment length
- 40 for 40km max. fiber segment length
- 80 for 80km max. fiber segment length
|
