Product Description:
- Slide in module for 900 series chassis
- Full IEEE 802.3 Compliance
- Extended Environmental Specifications
- -20º to 70º C Operating
Temperature
- four 100BaseFX Ports
- 4,000 MAC Addresses
- User configurable for Full or Half Duplex
- Plug & Play Operation
Ordering
Information
- 900B Industrial Ethernet switch chassis with 3 slots for optional
expansion modules
- 900B-N with N-View Firmware Option
- 900B-FP Filler Panel
- 900B-PM Panel Mount Kit
- 900-RM 19" Rackmount Kit
- 908TX Eight ports 10/100BaseTX (RJ-45)
- 902FX-XX Two ports 100BaseFX multimode fiber
- 902FXE-XX-YY Two ports 100BaseFX singlemode fiber

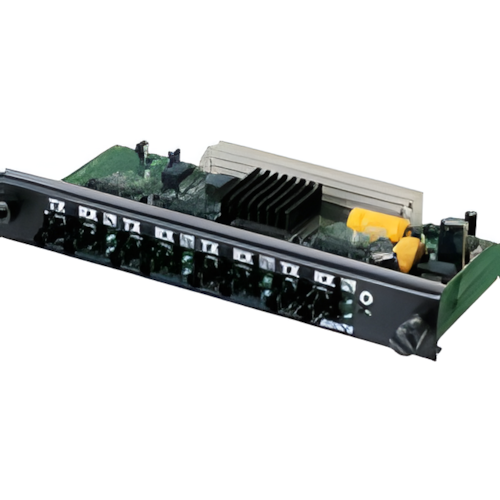

- 904FX-XX Four ports 100BaseFX multimode fiber
- 904FXE-XX-YY Four ports 100BaseFX singlemode fiber
Where "XX" is:
- ST for ST style fiber connector
- SC for SC style fiber connector
Where "YY" is:
- 15 for 15km max. fiber segment length
- 40 for 40km max. fiber segment length
- 80 for 80km max. fiber segment length
|
