Product Description:

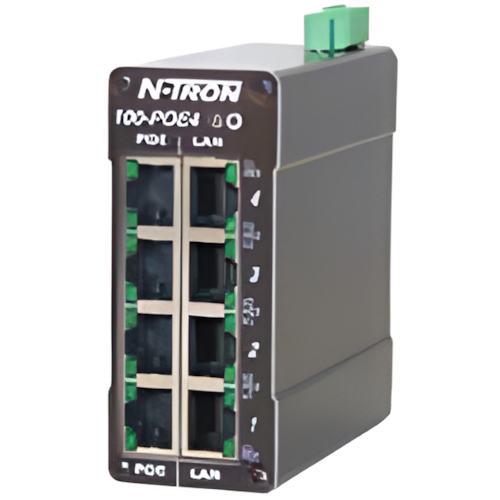

The 100-POE4 Industrial PoE Mid-Span Injector is designed
to trasmit power, along with data, over an Ethernet network
and is ideal for PoE capable devices where running an AC
power feed is either not possible or cost effective. This feature
allows an end user to power a PoE camera, wireless access
point, or any other PoE capable device without the need for
running separate wires for power. This also allows the ability
for a centralized battery backup for all these devices.
Features:
- Designed to Transmit Power, along with
data over an Ethernet Network
- Ideal for PoE Cameras, Wireless Access
Point, or other PoE Devices
- Four 10/100BaseTX RJ-45 Ports (Data In)
- Four 10/100BaseTX RJ-45 iPoE Ports (Data
& Power Out)
- Compact, Space Saving Package
- IEEE 802.3af Compliance
- Unmanaged Operation
- Extended Environmental Specifications
- -40º to 85ºC Operating
Temperature
- Automatic Detection of Connected PoE
Devices
- Up to 0.8 Gb/s Maximum Throughput
- Full Wire Speed Communications
- Supports 15.4 Watts per port (13 Watts at
the PD)
- Redundant Power Inputs (46-49 VDC)
- Power Fault Status LED
- LED iPoE Status Indication
- Hardened Metal DIN-Rail Enclosure
Specifications:
Physical
- Height: 3.50" (8.89cm)
- Width: 1.50" (3.81 cm)
- Depth Incl. DIN-Rail Mount: 4.22" (10.72 cm)
- DIN-Rail: 35mm
Electrical
- Input Voltage: 46-49 VDC
- Steady Input Current
- Under Full Load: 1.6 A@48V
- Steady Input Current
- Under No Load: 30mA@48V
- Inrush: 27Amp/1.5ms@48V
Environmental
- Operating Temperature: -40oC to 85oC
- Storage Temperature: -40oC to 85oC
- Operating Humidity: 10% to 95% (Non Condensing)
- Operating Altitude: 0 to 10,000 ft.
Reliablity
Network Media
- 10BaseT: >Cat3 Cable
- 100BaseTX: >Cat5 Cable
Connectors
- 10/100BaseTX: Eight (8) RJ-45 Copper Ports
Recommended Wiring Clearance
- Front: 2" (5.08 cm)
- Top: 1" (2.54 cm)
|
