Product Description:

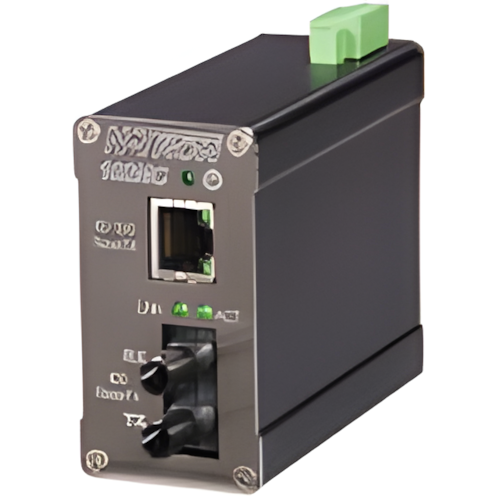

The 102MC is an unmanaged 10/100BaseTX to
100BaseFX Industrial Media Converter. It is housed
in a hardened, metal, DIN-Rail enclosure, and is
designed for use in industrial data acquisition, control,
and Ethernet I/O applications.
Features:
- Compact Size, Smaller Footprint
- Unmanaged Operation
- Full IEEE 802.3 Compliance
- Converts 10/100BaseTX to 100BaseFX
- One 10/100BaseTX RJ-45 Port
- One 100BaseFX Port (ST or SC Duplex)
- Extended Environmental Specifications
- -40º to 80ºC Operating
Temperature
- >2M Hours Measured MTBF
- RJ-45 Port Supports Full/Half Duplex
Operation
- LED Link/Activity Status Indication
- Store-and-forward Technology
- RJ-45 Port Auto Senses Speed and Flow
Control
- MDIX Auto Cable Sensing (RJ-45)
- Hardened Metal DIN-Rail Enclosure
- Redundant Power Inputs (10-30 VDC)
Specificaations
Physical
- Height: 2.88" (7.31 cm)
- Width: 1.50" (3.81 cm)
- Depth Incl. DIN-Rail Clip: 4.82" (12.2 cm)
- DIN-Rail: 35mm
Electrical
- Input Voltage: 10-30 VDC
- Input Current: 140mA@24V
- Inrush: 8.5Amp/0.7ms@24V
Environmental
- Operating Temperature: -40oC to 80oC
- Storage Temperature: -40oC to 85oC
- Operating Humidity: 10% to 95% (Non Condensing)
- Operating Altitude: 0 to 10,000 ft.
Network Media
- 10BaseT: >Cat3 Cable
- 100BaseTX: >Cat5 Cable
- 100BaseFX
- Multimode:
50-62.5/125?m
- Singlemode: 7-10/125?m
Fiber Transceiver Characteristics
| Fiber Length |
2km* |
15km** |
40km** |
80km** |
| TX Power Min |
-19dBm |
-15dBm |
-5dBm |
-5dBm |
| RX Sensitivity Max |
-32dBm |
-29dBm |
-34dBm |
-34dBm |
| Wavelength |
1310nm |
1310nm |
1310nm |
1310nm |
* Multimode Fiber Optic Cable ** Singlemode Fiber Optic
Cable
Connectors
- 10/100BaseTX: One (1) RJ-45 TX Port
- 100BaseFX: One (1) ST or SC Duplex Port
Recommended Wiring Clearance
- Front: 4" (10.16 cm)
- Top: 1" (2.54 cm)
|
