Product Description:

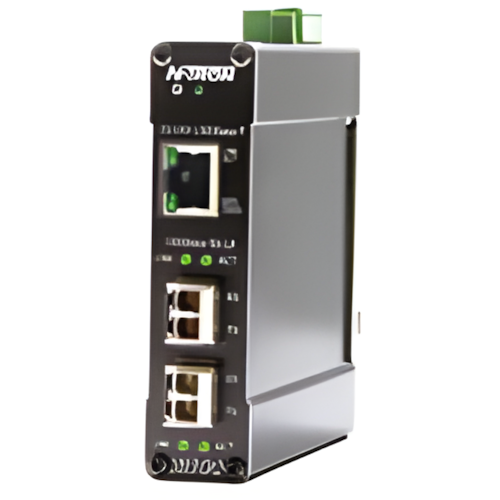

The 1003GX2 is an unmanaged three port Gigabit
Industrial Ethernet Switch. It is housed in a hardened,
metal, DIN-Rail enclosure, and is designed for use in
industrial data acquisition, control, and Ethernet I/O
applications.
Features:
- One 10/100/1000BaseT RJ-45 Port
- Two 1000BaseSX/LX SFP (Mini-GBIC) Ports
- Mix-and-Match Multimode and Singlemode
LC Style SFP Gigabit Fiber Transceivers
(Both SFP ports must be populated prior to shipping)
- Extended Environmental Specifications
- -40º to 85ºC Operating
Temperature
- Compact Size, Smaller Footprint
- Unmanaged Operation
- Full IEEE 802.3, 802.3u, 802.3z, and
802.3ab Compliance
- >2M Hours MTBF
- RJ-45 Port Supports Full/Half Duplex
Operation
- Up to 6.0 Gb/s Maximum Throughput
- Supports up to 1,024 MAC Addresses
- Store-and-forward Technology
- RJ-45 Port Auto Senses Speed and Flow
Control
- Full Wire Speed Communications
- MDIX Auto Cable Sensing (RJ-45)
- Hardened Metal DIN-Rail Enclosure
- LED Link/Activity Status Indication
- Redundant Power Inputs (10-30 VDC)
Specifications:
Physical
- Height: 4.30" (10.92 cm)
- Width: 1.00" (2.54 cm)
- Depth Incl. DIN-Rail Clip: 3.91" (9.94 cm)
- DIN-Rail: 35mm
Electrical
- Input Voltage: 10-30 VDC
- Input Current: 200mA@24V
- Inrush: 13Amp/0.8ms@24V
Environmental
- Operating Temperature: -40oC to 85oC
- Storage Temperature: -40oC to 85oC
- Operating Humidity: 10% to 95% (Non Condensing)
- Operating Altitude: 0 to 10,000 ft.
Network Media
- 10BaseT: >Cat3 Cable
- 100BaseT: >Cat5 Cable
- 1000BaseT: >Cat5e Cable
- 1000BaseSX Multimode: 50-62.5/125μm
- 1000BaseLX Singlemode: 7-10/125μm
SFP
Gigabit Fiber Transceiver Characteristics
Fiber Length
|
550m for 50/125μm*
275m for 62.5/125μm*
|
10km** |
40km** |
70km** |
TX Power Min
|
-9.5dBm |
-9.5dBm |
-2dBm |
0dBm |
RX Sensitivity Max
|
-17dBm |
-20dBm |
-22dBm |
-23dBm |
Wavelength
|
850nm |
1310nm |
1310nm |
1550nm |
Assumed Fiber Loss
|
3.5 to 3.75dB/km |
.45dB/km |
.35dB/km |
.25dB/km |
Laser Type
|
VCSEL |
FP |
DFB |
DFB |
* SX Fiber Optic Cable ** LX Fiber Optic Cable
Connectors
- 10/100/1000BaseT: One (1) RJ-45 TX Port
- 1000BaseSX/LX SFP: Two (2) SFP LC Duplex Gigabit Fiber Ports
Recommended Wiring Clearance
- Front: 5" (12.70 cm)
- Top: 1" (2.54 cm)
Ordering Information
- 1003GX2-B One 10/100/1000BaseT Port Two 1000BaseSX/LX Ports with
mix-and-match SFP Transceivers*
- 1003GX2-SX One 10/100/1000BaseT Port Two 1000BaseSX SFP
Transceivers
- 1003GX2-LX-10 One 10/100/1000BaseT Port Two 1000BaseLX-10 SFP
Transceivers
- 1003GX2-LX-40 One 10/100/1000BaseT Port Two 1000BaseLX-40 SFP
Transceivers
- 1003GX2-LX-70 One 10/100/1000BaseT Port Two 1000BaseLX-70 SFP
Transceivers
- 1000-PM Panel Mount Kit
- NTPS-24-1.3 DIN-Rail Power Supply 24V@1.3 Amp
- NTSFP-SX One 1000BaseSX Multimode SFP Gigabit Transceiver (two
required per unit)
- NTSFP-LX-ZZ One 1000BaseLX Singlemode SFP Gigabit Transceiver
(two required per unit)
ZZ = 10, 40, or 70 for GB Singlemode SFP Transceiver
*Unit must be fully populated with two SFP transceivers upon shipment.
|
