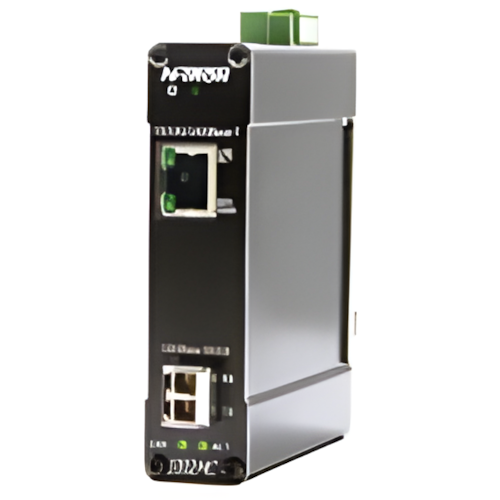

Red Lion Controls N-Tron 10/100/1000BaseT to 1000BaseLX Media Converter (Singlemode, SFP Pluggable Mini-GBIC w/ LC style connector, 10km) DIN-Rail

Manufacturer Red Lion Controls Mfg. Part # 1002MC-LX-10 ITEM# 825397 Unit Price $966.24 (~CAD$1,204.42) Availability In Stock Buy

Shipping and Handling: Singular Select... Regular [6-9 Business Days] -- $73.9[CAD$92.12] Priority [4-6 Business Days] -- $117.4[CAD$146.34] Extreme [2-4 Business Days] -- $168[CAD$209.42]  INTERNATIONAL GROUND SHIPPING: For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation No other hidden fees will be collected from you when packages arrive. Guaranteed [ Detailed Explanation ]

[ View Detail Product Info ]

Product Description: The 1002MC is an unmanaged 10/100/1000BaseT to 1000BaseSX/LX Industrial Media Converter. It is housed in a hardened, metal, DIN-Rail enclosure, and is designed for use in industrial data acquisition, control, and Ethernet I/O applications. Features: Converts 10/100/1000BaseT to 1000BaseSX/LX Choose from Multimode or Singlemode LC Style SFP (Mini-GBIC) Gigabit Fiber Transceivers Extended Environmental Specifications -40º to 85ºC Operating Temperature Compact Size, Smaller Footprint Unmanaged Operation Full IEEE 802.3, 802.3u, 802.3z, and 802.3ab Compliance >2M Hours MTBF RJ-45 Port Supports Full/Half Duplex Operation Up to 2.0 Gb/s Maximum Throughput Supports up to 1,024 MAC Addresses Store-and-forward Technology RJ-45 Port Auto Senses Speed and Flow Control Full Wire Speed Communications MDIX Auto Cable Sensing (RJ-45) Hardened Metal DIN-Rail Enclosure LED Link/Activity Status Indication Redundant Power Inputs (10-30 VDC) Specifications: Physical Height: 4.30" (10.92 cm) Width: 1.00" (2.54 cm) Depth Incl. DIN-Rail Clip: 3.91" (9.94 cm) DIN-Rail: 35mm Electrical Input Voltage: 10-30 VDC Input Current: 200mA@24V Inrush: 13Amp/0.8ms@24V Environmental Operating Temperature: -40oC to 85oC Storage Temperature: -40oC to 85oC Operating Humidity: 10% to 95% (Non Condensing) Operating Altitude: 0 to 10,000 ft. Network Media 10BaseT: >Cat3 Cable 100BaseT: >Cat5 Cable 1000BaseT: >Cat5e Cable 1000BaseSX Multimode: 50-62.5/125μm 1000BaseLX Singlemode: 7-10/125μm SFP Gigabit Fiber Transceiver Characteristics Fiber Length 550m for 50/125μm* 275m for 62.5/125μm* 10km** 40km** 70km** TX Power Min -9.5dBm -9.5dBm -2dBm 0dBm RX Sensitivity Max -17dBm -20dBm -22dBm -23dBm Wavelength 850nm 1310nm 1310nm 1550nm Assumed Fiber Loss 3.5 to 3.75dB/km .45dB/km .35dB/km .25dB/km Laser Type VCSEL FP DFB DFB * SX Fiber Optic Cable ** LX Fiber Optic Cable Connectors 10/100/1000BaseT: One (1) RJ-45 TX Port 1000BaseSX/LX SFP: One (1) SFP LC Duplex Gigabit Fiber Port Recommended Wiring Clearance Front: 5" (12.70 cm) Top: 1" (2.54 cm) Ordering Information 1002MC-SX 1000BaseSX multimode fiber 1002MC-LX-ZZ 1000BaseLX singlemode fiber 1000-PM Panel Mount Kit NTPS-24-1.3 DIN-Rail Power Supply, 24V@1.3 Amp Where "ZZ" is: 10 for 10km max. fiber segment length 40 for 40km max. fiber segment length 70 for 70km max. fiber segment length
