Product Description:

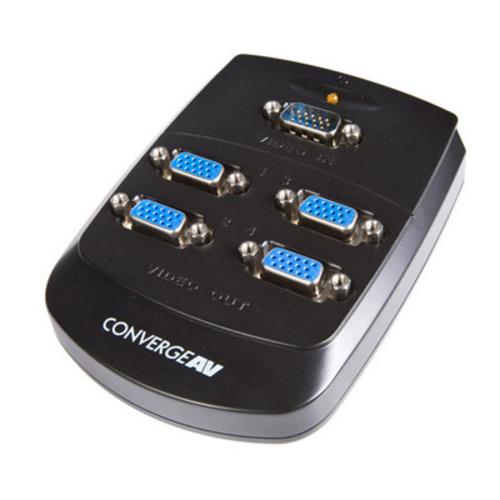

Distribute and deliver VGA video content with the Converge A/V
four-port VGA video Splitter by StarTech.com. Allowing a single VGA
video source to be displayed on four monitors simultaneously, the
ST124W VGA Video Splitter is perfect for retail and tradeshow
environments, as well as educational and government facilities, or
corporate displays where high quality video is required. The ST124W
supports resolutions up to 1600 x 1200 and can be wall-mounted for "out
of the way" installation. The VGA Splitter lets you locate screens up
to 200' away from your system, and offers easy plug and play
installation that makes for a quicker setup. Rely on Converge A/V
products for all your Audio/Visual and Digital Signage needs.
Device Type |
Video splitter - cascadable |
Enclosure Type |
External |
Width |
3.4 in |
Depth |
4.5 in |
Height |
1.3 in |
Enclosure Color |
Silver |
Networking |
Ports Qty |
4 |
Connectivity
Technology |
Wired |
Status Indicators |
Power |
Features |
Wall mountable |
KVM |
Max Cascading
Depth |
3 |
Max Resolution |
1920 x 1440 @ 75 Hz |
Max Video
Bandwidth |
250 MHz |
Expansion / Connectivity |
Interfaces |
4 x display / video - VGA output -
15 pin HD D-Sub (HD-15) female |
Connections |
1 x display / video - VGA input - 15
pin HD D-Sub (HD-15) male |
Miscellaneous |
Compliant
Standards |
CE, FCC, RoHS |
Power |
Power Device |
Power adapter - external |
Power
Consumption Operational |
2.25 Watt |
Manufacturer Warranty |
Service &
Support |
1 year warranty |
Service &
Support Details |
Limited warranty - 1 year |
Environmental Parameters |
Min Operating
Temperature |
32 °F |
Max Operating
Temperature |
122 °F |
Humidity Range
Operating |
0 - 80% |
|
