Product Description:

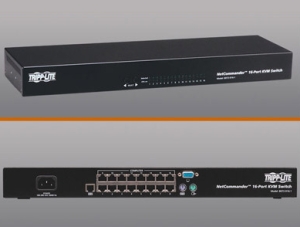

Tripp Lite's 16-Port NetCommander 1U Rackmount Cat5 KVM over IP Switch
is the next generation of the cost-effective, feature-rich KVM
switches. Its sleek, 1U design and compact size features RJ45
connection ports that utilize inexpensive Cat5 patch cables, reducing
the amount of cable clutter normally found with traditional KVM
cabling, as well as the ability to log in from anywhere via the
Internet. Easily switch between CPU's with hot key commands, the
built-in On-Screen Display (OSD) menu or the remote console toolbar.
Cascadability allows connection to up to 256 computers. Compatible with
PS/2 and USB computers, VGA, SVGA or XGA monitors.
Device Type |
KVM switch - cascadable |
Enclosure Type |
Rack-mountable - 1U |
Width |
17 in |
Depth |
9 in |
Height |
1.7 in |
Networking |
Ports Qty |
16 |
Remote
Management Protocol |
HTTPS |
Features |
On-Screen Display, 128-bit
encryption, firmware upgradable |
KVM |
KVM Local Users
Qty |
1 local user |
Server
Connection Via Twisted Pair |
CAT5 |
Max Resolution |
1600 x 1200 @ 75 Hz |
Expansion / Connectivity |
Interfaces |
16 x keyboard / video / mouse (KVM)
- RJ-45 female
1 x serial - RJ-45 female
1 x management - RS-232 - RJ-11 female |
Connections |
1 x keyboard - generic - 6 pin
mini-DIN (PS/2 style) female
1 x mouse - generic - 6 pin mini-DIN (PS/2 style) female
1 x display / video - VGA - 15 pin HD D-Sub (HD-15) female
1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 female |
Miscellaneous |
Cables Included |
1 x serial cable - 6 ft |
Rack Mounting Kit |
Included |
Encryption
Algorithm |
SSL |
Power |
Power Device |
Power supply - internal |
Software / System Requirements |
OS Required |
Microsoft DOS, UNIX, HP-UX, Linux,
Microsoft Windows |
Manufacturer Warranty |
Service &
Support |
1 year warranty |
Service &
Support Details |
Limited warranty - 1 year |
Environmental Parameters |
Min Operating
Temperature |
32 °F |
Max Operating
Temperature |
104 °F |
Humidity Range
Operating |
0 - 80% |
|
