Product Description:

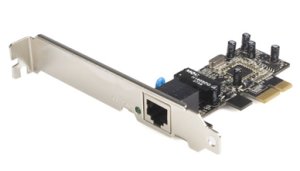

This PCI Express 10/100 Dual Profile Ethernet Card provides a simple
way to connect a PCI Express enabled server or workstation to a 10/100
Ethernet network for data throughput speeds of up to 2.5Gbps. The
PEX100S 10/100 Ethernet Card offers a broad range of features and
functions, including support for both Full and Half Duplex operation as
well as Wake On LAN (WOL) Power Management. PEX100S is compatible with
most mATX (Slimline) and ATX system form factors and features Auto
MDI/MDIX automatic configuration, simplifying installation and
configuration.
| Device Type |
Network adapter |
| Form Factor |
Plug-in card - low profile |
| Interface (Bus)
Type |
PCI Express x1 |
| Width |
0.8 in |
| Depth |
4.7 in |
| Networking |
| Connectivity
Technology |
Wired |
| Cabling Type |
Ethernet 10Base-T, Ethernet
100Base-TX |
| Data Link
Protocol |
Ethernet, Fast Ethernet |
| Data Transfer
Rate |
100 Mbps |
| Status Indicators |
Port transmission speed |
| Features |
Full
duplex capability, auto-sensing per device, auto-negotiation, wake on
LAN (WOL), auto-uplink (auto MDI/MDI-X), half duplex mode |
| Compliant
Standards |
IEEE 802.3x |
| Processor / Memory |
| Processor |
1 x RTL8101E - Realtek Semiconductor |
| Expansion / Connectivity |
| Interfaces |
1 x network - Ethernet
10Base-T/100Base-TX - RJ-45 |
| Compatible Slots |
1 x PCI Express x1 |
| Miscellaneous |
| Included
Accessories |
Low-profile bracket, full-height
bracket |
| Compliant
Standards |
CE, FCC, RoHS |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| OS Required |
Microsoft
Windows XP 64-bit Edition, Microsoft Windows 98SE/2000/ME/XP, Microsoft
Windows Vista, Microsoft Windows Vista (64-bit versions) |
| Peripheral /
Interface Devices |
CD-ROM |
| Manufacturer Warranty |
| Service &
Support |
Limited lifetime warranty |
|
