Product Description:

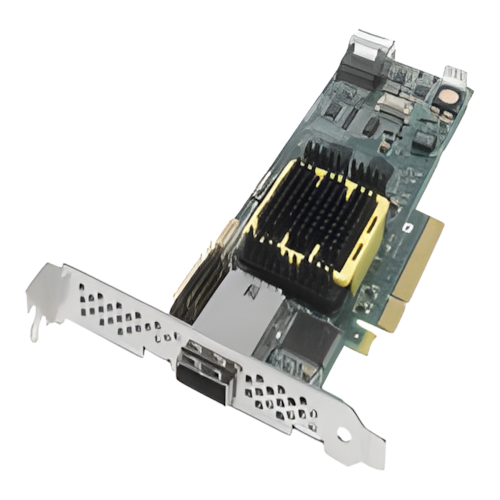

This Adaptec Unified Serial controller meets your need for maximum
performance, scalability, and flexibility for enterprise-class
applications, including network attached storage, online transaction
processing web, digital surveillance, and streaming applications. The
Adaptec RAID 5445 is equipped with industry-leading dual core RAID on
Chip (ROC), the x8 PCI-Express connectivity, and 512MB of DDR2 cache to
deliver over 250,000 IO per second and 1.2GB/s. Four internal ports
plus four external ports in this Unified Serial controller give you
more flexibility to connect up to 256 SATA/SAS disk drives through SAS
expanders in your choice of internal and external configurations. The
Adaptec RAID 5445 features Adaptec RAID Code (ARC) with RAID levels 0,
1, 1E, 5, 5EE, 6, 10, 50, 60, JBOD, as well as Copyback Hot Spare.
Adaptec Storage Manager provides one-view centralized management of all
your Adaptec RAID controllers. The Adaptec RAID 5445 also integrates
the PCIe connectivity, the broadest operating system support, including
open source Linux drivers and proven compatibility.
| Product Description |
Adaptec RAID 5445 - storage controller (RAID) - SATA-300 /
SAS - PCI Express x8 |
| Device Type |
Storage controller (RAID) - plug-in card - low profile |
| Interface Type |
PCI Express x8 |
| Dimensions (WxDxH) |
6.6 in x 2.5 in |
| Controller Interface Type |
Serial ATA-300 / SAS |
| Data Transfer Rate |
300 MBps |
| Buffer Size |
512 MB |
| Supported Devices |
Hard drive, disk array (RAID) |
| Channel Qty |
8 |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID
1E, RAID 5EE, RAID 60 |
| Package Type |
Retail |
| Vista Certification |
Works with Windows Vista |
| Manufacturer Warranty |
3 years warranty |
|
