Product Description:

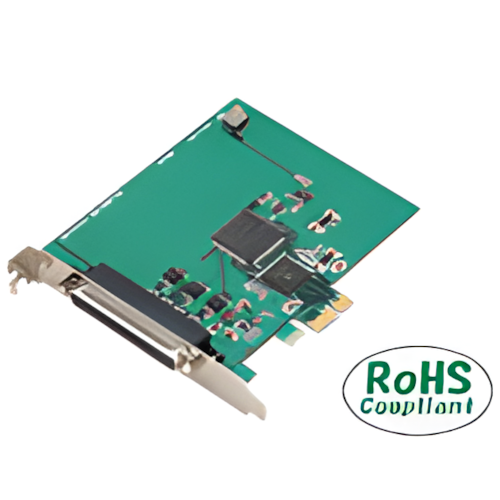

This product is a PCI Express bus-compliant unisolated digital I/O
board for input/output of digital signals (TTL level). Unisolated TTL
level input 16ch and unisolated open collector output 16ch are
provided, and all input signals can be used as interrupts. In addition,
digital filter function to prevent wrong recognition of input signals
is provided. With the driver libraries for Windows/Linux supplied as
standard, applications with CONTEC hardware features fully utilized can
be created. LabVIEW is supported with a plug-in of dedicated libraries.
Environment Compliancy: RoHS Directive
Function
- 16ch
of unisolated TTL level input and 16ch of unisolated open-collector
output with a response time of 200nsec. Output rating: max 30VDC, 40mA
per pin.
- You
can use all of the input signals as interrupt events and also disable
or enable the interrupt in bit units and select the interrupt edge.
- This
product has a digital filter to prevent input signals from carrying
noise or a chattering. This product has a digital filter to prevent
input signals from carrying noise or a chattering. All input channels
can be added a digital filter, and the setting can be performed by
software.
- Windows/Linux
compatible driver libraries are attached: Bundled driver library
API-PAC(W32) enables to create Window/Linux applications. In addition,
a diagnostic program by which the operations of hardware can be checked
is provided.
- The
functions are same with PCI compatible board PIO-16/16T(PCI)H. In
addition, as there is compatibility in terms of connector shape and pin
assignments, it is easy to migrate from the existing system.
Digital I/O
| Bus |
PCI Express |
| Function |
I/O |
| Input |
16 |
| Output |
16 |
| Bidirection |
- |
| Working
voltage |
Input: 5VDC-TTL;
Output: 5VDC-TTL |
|
