Product Description:

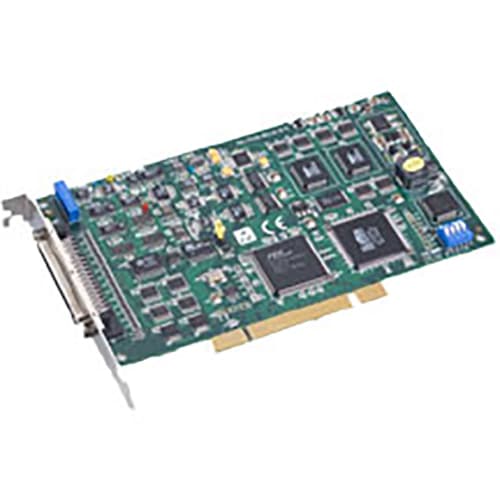

PCI-1742U is a powerful high-resolution multifunction DAS card for the
PCI bus. Its sampling rate of up to 1 MS/s and 16-bit resolution,
fulfill the needs of most data acquisition applications. PCI-1742U
provides 16 single-ended or 8 differential analog input channels, two
16-bit D/A output channels, 16 digital input/output channels, and one
10 MHz 16-bit counter channel.
Features
- 16 single-ended or 8 differential or a combination of analog
inputs
- 16-bit A/D converter, with up to 1 MHz sampling rate
- Onboard FIFO memory (1024 samples)
- Auto calibration
- Two 16-bit analog output channels
- 16 digital inputs and 16 digital outputs
- Onboard programmable counter
- Universal PCI Bus (support 3.3 V or 5 V PCI bus signal)
- BoardID™ switch
Specifications
Analog Input |
Bipolar Inputs (V) |
±10, 5, 2.5, 1.25, 0.625 |
Channels |
16 S.E./8 Diff |
Resolution |
16 bits |
Sampling Rate |
1 MS/s |
Unipolar Input (v) |
0 ~ 10, 0 ~ 5, 0 ~ 2.5, 0 ~ 1.25 |
Analog Output |
Resolution |
16 bits |
Digital I/O |
Digital Input Channel |
16 |
Digital Ouput Channel |
16 |
Timer/Counter |
Resolution |
16 bits |
Time Base |
10 MHz |
|
