MODEL- OR500LCDRM1U       VENDOR- CYBERPOWER

FEATURES- 500VA Office Rackmount LCD series UPS

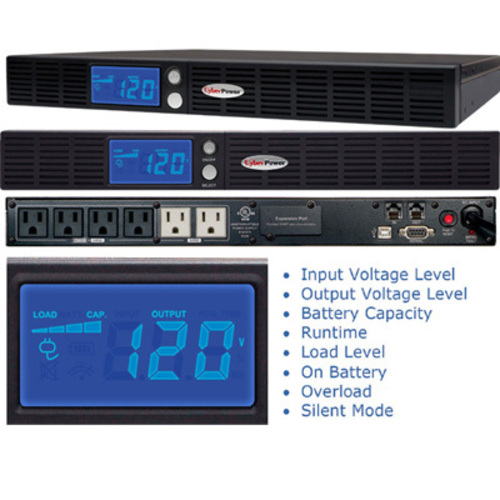

       The Office Rackmount LCD Series UPS is designed to protect home-
        office servers, PCs, graphic workstations, and commercial
        electronics.  The Intelligent Crystal-Blue LCD diagnostic panel
        gives administrators immediate, real-time information of the UPS's
        vitals.  LCD diagnostics include Input/Output Voltage, Battery
        Capacity, Estimated Runtime, Load Level, On Battery, Overload, and
        Silent Mode.
       The OR500LCDRM1U has 6 outlets, USB/Serial communication ports, and
        RJ11/RJ45 network protection.  Automatic Voltage Regulation (AVR)
        ensures that all your connected equipment is receiving clean power
        and stabilizes the voltage to a nominal 120VAC.
       PowerPanel Plus  Smart-App Management software (included)
        automatically saves and closes open files and shutdowns the PC in
        an intelligent and orderly manner.  CyberPower also carries a
        3-year unlimited warranty, has a professional award-winning
        Technical Support, and offers a lifetime Connected Equipment
        Guarantee of $35,000.
    Includes UPS Unit; Rack Ears (2); User Manual; Power Management
      Software; Warranty Card; Serial Cable; Phone Cable; USB Cable.
* Intelligent LCD Diagnostic Display
   The innovative front panel LCD can be used to display detailed
   information on the UPS status and current power conditions. The LCD
   displays 11 different diagnostics: AVR Status, Estimated Runtime,
   Battery Capacity, Load Level, Input & Output Voltage Level, Output
   Frequency, On-Battery, Overload, Fault, and Silent Mode.
* Automatic Voltage Regulation (AVR)
   AVR takes irregular AC power and converts it into a consistent Sinewave
   so sensitive electronic equipment can achieve its optimal performance.
   This "Boost/Buck" topology will both increase low voltages and decrease
   high voltages, without switching to battery-mode.  This not only
   conserves battery life, but also delivers a more stable signal to your
   connected equipment.
* Microprocessor-based Digital Control
   Digital routing is maintained through a network of integrated circuitry
   and discrete values are used for internal system processing, which
   significantly increases efficiency and response of CyberPower UPS's.
* EMI/RFI
   Provides shielding against electromagnetic interference & radio
   frequency signals.  Most commonly, this is used to prevent line noise or
   "humming" that occurs over telephone lines or stereo electronics.
* USB Connectivity
   HID compliant USB port enables full integration with built-in power
   management and auto shutdown features of Windows, Linux and Mac OS X.
* Metal Housing
   Rigid metal construction allows for placement in areas with a demanding
   environment.
* Audible Alarms
   Audible tones identify when the unit is running off battery power, unit
   overloads and low battery.
* Resettable Circuit Breaker
   Convenient unit reset switch in case of an overload.
* 3-year Warranty
   CyberPower will replace damaged units if within 3 years of purchase
   date.  We stand behind our products and guarantee quality.  CyberPower
   also offers a #1 rated technical support team that will assist you with
   product, installation, or warranty concerns --- Free of Charge!
* ISO & Safety Certifications
   All CyberPower's manufacturing facilities are ISO-9001 Quality Tested.
   Our products are also certified by the FCC, cUL, and UL.
* Windows Vista Compliant
   Our Power Management software has been fully tested and compliant with
   Windows 9x, 200x, Server, XP, and Vista.

  -- SPECIFICATIONS ----------------------------------
UPS TYPE     - Line-Interactive
INPUT        - Voltage              : 90VAC - 140VAC
               Frequency            : 60 Hz +/- 3 Hz
               Plug Type            : NEMA 5-15P
               Plug Style           : Straight
               Cord Length          : 10 foot
OUTPUT       - VA                   : 500
               Watts                : 300
               On Battery Voltage   : 120Vac +/- 10%
               On Battery Frequency : 60Hz +/- 1%
               On Battery Waveform  : Simulated sine wave
               Outlet Type          : NEMA 5-15R
               Battery/Surge Outlets: 4 Battery/Surge
                                      2 Surge only
               Overload Protection  : Internal circuitry limiting/circuit
                                        breaker.
               Voltage Regulation   : Yes
               Transfer Time        : 4ms
BATTERY & RUNTIME-
               Runtime at Half Load : 12 minutes
               Runtime at Full Load :  3 minutes
               Battery Type         : Sealed lead acid
               Battery Model        : 6V 7AH x 2
               User Replaceable     : Yes
               Typical Recharge Time: 8 Hours
SURGE PROTECTION & FILTERING-
               Surge Suppression    : 1,030 Joules
               Maximum Surge Current: 6,500 Amps
               Phone/Ethernet
                          RJ11/RJ45 : 1 in, 1 out combo
               Coax Protection      : None
COMMUNICATIONS & MANAGEMENT-
               USB HID Compliant UPS: Yes
               Serial Port          : Yes
               Management Cable     : USB cable, Serial cable
               Audible Alarms       : On battery, low battery, overload
               Software             : PowerPanel Business Edition
               SNMP/HTTP Remote
                          Monitoring: Optional
               LCD Display          : Yes
SOFTWARE     - Includes PowerPanel Business Edition
ENVIRONMENTAL- Operating Temperature: 32 to 104 degrees F
               Operating Humidity   : 0 to 95% Non-condensing
WARRANTY     - $35,000 Connected Equipment Guarantee
APPROVALS    - FCC B, CUL, UL1778, cUL 107.1
DIMENSIONS   - 17.0"w x 1.75"h x 9.25"d  (1U)    WT.- 18 lbs.
www.cyberpowersystems.com
