Product Description:

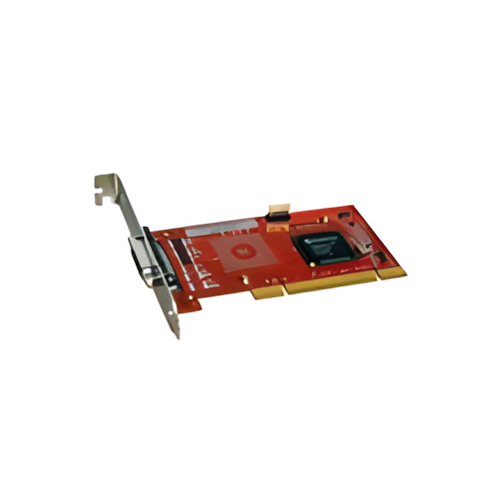

This RocketPort INFINITY card delivers up to 8-ports of additional
in-server serial connectivity via a four or eight-port external
interface that is purchased separately. Data communication of 460Kbps
is connected through RS-232/422/485 software-selectable ports. The
serial adapter card is a low profile design suitable for use in both
standard servers and 2U rackmount servers. Product is fully compatible
with systems that have 32 or 64 bit 3.3 or 5 volt PCI and PCI-X
expansion slots. The INFINITY design utilizes the Comtrol Unity ASIC
technology that takes full advantage of the 66 MHz BUS speed available
on PCI-X servers.
-
32 or 64 Bit 3.3 or 5 Volt Universal PCI or PCI-X
Connectivity
-
Low-profile or Standard Height Compatible
-
RS-232, RS-422, RS-485 Software-selectable Serial
Ports
-
High Performance Cards with Communication Speeds
up to 460 Kbps
-
RoHS Compliant
- Microsoft Certified WHQL Drivers for Windows Vista, Windows XP,
and Windows Server 2003
|
