Product Description:
html

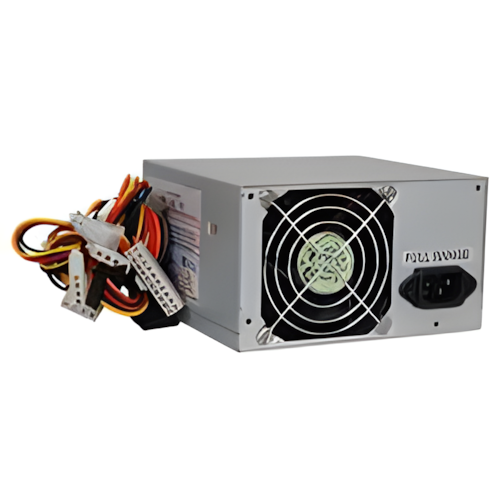

400W PS/2 Medical Type ATX Power Supply
Features
- Internal 8 cm fan
- Meets Medical Safety
- Line input fuse protection
- Output over voltage protection
- Short circuit protection on all outputs
- Total +12V output up to 34A
Specifications
| Input |
Voltage |
90 ~ 265VAC Full Range |
| Frequency |
47~63 HZ |
| Input Current |
8A(RMS)@115VAC
4A(RMS)@230VAC |
| Inrush Current |
60A Max for 115VAC
100A Max for 230VAC
|
| Output |
| Voltage |
Min. load |
Max. load |
Ripple & Noise |
| +3.3V |
0.5A |
30A |
50mV |
| +5V |
0.3A |
30A |
50mV |
| +12V1 |
1A |
17A |
120mV |
| +12V2 |
1A |
17A |
120mV |
| -5V |
0A |
0.3A |
100mV |
| -12V |
0A |
0.8A |
120mV |
| +5Vsb |
0A |
2A |
50mV |
+3.3V &+5V ≤ 180W
+3.3V & +5V & +12V ≤ 380W
|
| General |
Watt |
400W |
| PFC |
Active |
| Hold-up time |
20ms minimum |
| Efficiency |
68% |
| MTBF |
100,000hrs |
| Temperature |
0 ~ 50°C (Operating)
-20 ~ 80°C (Storage) |
| Dimension |
140 x 150 x 86 mm |
|
