Product Description:
html

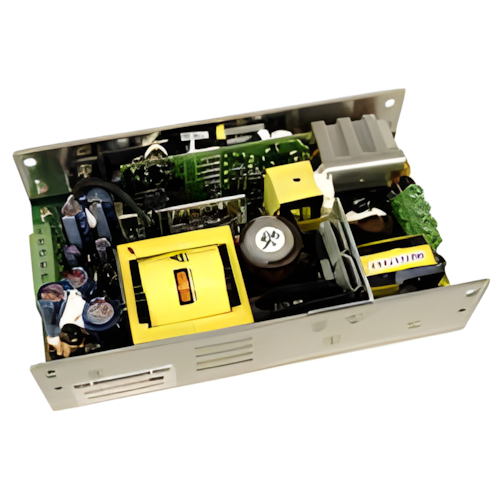

130W AC-DC Open Frame ATX Medical Power Supply, with PFC
Features
- High efficiency over 80%
- Operation from 0°C to 70°C by convection
- Full functional over voltage / current protection
- Multiple ITE & Medical standard certificated
Specifications
| Input |
Voltage |
85 ~ 264VAC Full Range |
| Frequency |
47~63 HZ |
| Input Current |
2A(RMS)@115VAC
1A(RMS)@230VAC |
| Inrush Current |
30A Max for 115VAC
60A Max for 230VAC
|
| Output |
| Voltage |
Min. load |
Max. load |
Ripple & Noise |
| +5V |
0.2A |
10A |
50mV |
| +12V |
0A |
6A |
100mV |
| -12V |
0A |
0.5A |
100mV |
| +5Vsb |
0A |
0.5A |
50mV |
+5V & +12V ≤ 120W |
| General |
Watt |
130W |
| PFC |
Active |
| Hold-up time |
20ms minimum |
| Efficiency |
80% |
| MTBF |
143,000hrs |
| Temperature |
0 ~ 70°C (Operating)
-40 ~ 75°C (Storage) |
| Dimension |
152.4 x 89 x 39 mm |
|
