NeutronCanada.com

IEI Technology

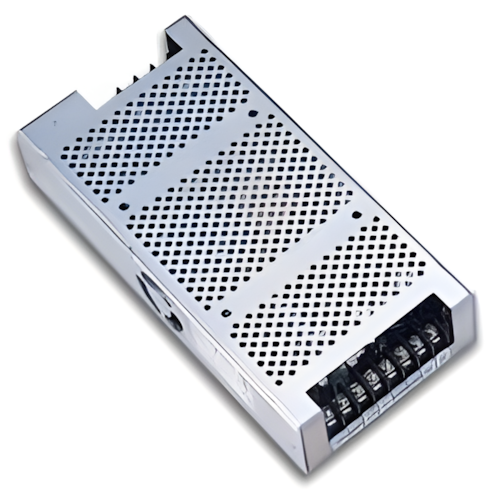

Rugged 24V DC input 150W power supply

1256532_IEI_Technology__ACE716CRS.jpg-GRAY_CABLE_PANEL

Manufacturer	IEI Technology
Mfg. Part #	ACE-716C-RS
ITEM#	723318
Unit Price	$217.33 (~CAD$270.91)
Availability	In Stock
Buy

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

[ View Detail Product Info ]

Product Description:
150W DC24V input 1U AT Power Supply

Features

High efficiency
Low Ripple and Noise
Full functional over voltage / current protection

Specifications

Input

Voltage

19 ~ 30VDC

Frequency

Input Current

12A(RMS)@24VDC

Inrush Current

Output

Voltage	Min. load	Max. load	Ripple & Noise
+5V	2A	18A	100mV
+12V	0A	4A	100mV
-5V	0A	0.5A	100mV
-12V	0A	1A	100mV

General

Watt

150W

PFC

Hold-up time

Efficiency

70%

MTBF

210,000hrs

Temperature

-20 ~ 70°C (Operating)
-20 ~ 85°C (Storage)

Dimension

198 x 97 x 40.5 mm
