Product Description:

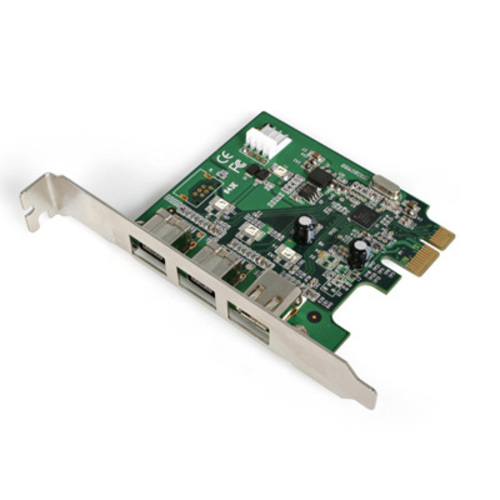

Have a need for speed? Get a PCI Express FireWire 800 (1394b) card for
the same price as 1394a. The PEX1394B3 is built with a native PCI
Express chipset and does not use a PCI Express bridge chip resulting in
faster, reliable, and cost effective performance. With an unrivaled 800
Mbps data transfer capability, the two IEEE 1394b ports provide highly
efficient, reliable communication. The card also provides a 400
Mbits/sec IEEE 1394a port for your older FireWire peripherals. The
PEX1394B3 supports the most demanding IEEE 1394b peripherals like
portable hard drives, DV camcorders, digital cameras and CD-RW/DVD-ROM
drives. Creating your own high-speed laptop digital media center has
never been easier.
| Device Type |
FireWire adapter - 2 ports |
| Form Factor |
Plug-in card |
| Interface (Bus)
Type |
PCI Express x1 |
| Bus Voltage |
3.3 V |
| Networking |
| Connectivity
Technology |
Wired |
| Data Link
Protocol |
IEEE 1394b (FireWire 800) |
| Auxiliary Ports |
1 x IEEE 1394 (FireWire) |
| Data Transfer
Rate |
800 Mbps |
| Expansion / Connectivity |
| Interfaces |
2 x IEEE 1394b (FireWire 800) - 9
pin FireWire 800
1 x IEEE 1394 (FireWire) - 6 pin FireWire |
| Compatible Slots |
1 x PCI Express x1 |
| Miscellaneous |
| Cables Included |
1 x IEEE 1394b cable ( external ) -
5 ft |
| Compliant
Standards |
CE, UL, FCC |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| OS Required |
Microsoft Windows Server 2003, Apple
MacOS X 10.2.4 or later, Microsoft Windows 98SE/2000/ME/XP |
| Manufacturer Warranty |
| Service &
Support |
Limited lifetime warranty |
| Service &
Support Details |
Limited warranty - lifetime |
|
