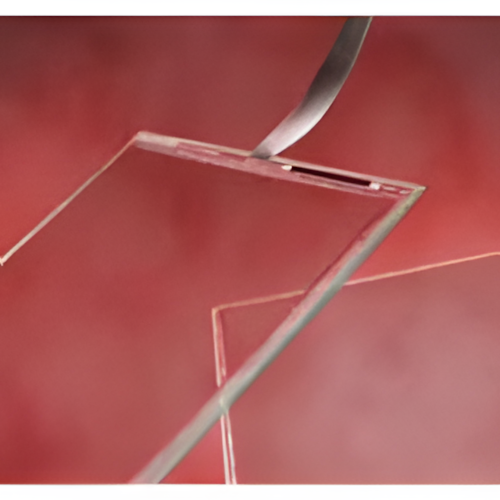

Product Description:
Elo developed AccuTouch technology with the harshest environments in
mind, so it's no wonder that it excels in reliability, durability, and
expected product life. Impervious to environmental conditions such as
liquid spills and splashes and washdown, these screens are the most
contamination-resistant available. They deliver drift-free operation
for a lifetime of 35 million finger touches.
Five-wire resistive is the most accurate and reliable touchscreen
technology. Elo, the inventor of resistive technology, takes five-wire
resistive several steps further with its proprietary AccuTouch
touchscreens.
Benefits
- Stable, drift-free operation
- Broad input flexibility
- Contamination resistance
- Accuracy in high-use applications
- Long product life
- Meets NEMA 4/4x/12 and IP65 standards
Applications
- Point-of-sale (POS) terminals
- Voting machines
- Industrial automation
- Medical equipment
- Office automation
- Retail automation
- Pharmacy automation
MECHANICAL
|
Input Method
|
Finger, gloved hand, or stylus
activation
|
Available Sizes
|
6.4" to 21.3"; visit our Web
site for full specifications and other offerings
|
ELECTRICAL
|
Positional Accuracy
|
Standard deviation error is less
than 0.080 (2 mm)
|
Resolution
|
Touchpoint density is based on
controller resolution of 4096 x 4096
|
Touch Activation Force
|
Typically less than 4 ounces
(113 grams)
|
Controller
|
Board: Serial (RS232) and USB
Chip: Serial (RS232) and USB
|
OPTICAL
|
Light Transmission
|
HL products: 80% + /5% at 550 nm
wavelength
|
ENVIRONMENTAL
|
Temperature/ Relative Humidity
|
Operating: 90% RH at max
35°C (standard design), 90% RH at max 50°C (enhanced design)
Storage: 90% RH at max 35°C for 240 hrs, noncondensing (standard
design), 90% RH at max 50°C for 240 hrs, noncondensing (enhanced
design)
|
Altitude
|
Operating: 10,000 ft (3,048 m)
Storage/transport: 50,000 ft (15,240 m)
|
Chemical Resistance
|
Industrial chemicals: acetone,
methylene chloride, methyl ethyl ketone, isopropyl alcohol,
hexane, turpentine, mineral spirits, unleaded gasoline, diesel fuel,
motor oil, transmission fluid,
antifreeze. Food-service chemicals: vinegar, coffee, tea, grease,
cooking oil, salt, plus most
commercial cleaners including ammonia-based glass cleaner and laundry
detergent.
|
Electrostatic Protection
|
Per EN 61000-4-2, 1995:
Withstands 20 discharges up to 15 kV
|
Agency Approvals
|
UL, cUL, TÜV, CE, FCC Class
A
|
Sealability
|
Can be sealed to meet NEMA 4 and
12 and IP 65 standards
|
DURABILITY
|
Surface Durability
|
3H per ASTM D3363
|
Expected Life
|
Operationally tested to 35
million touches in one location without failure
|
Warranty
|
Touchscreen: 5-year limited
warranty
Controller: 5-year limited warranty
|
|
