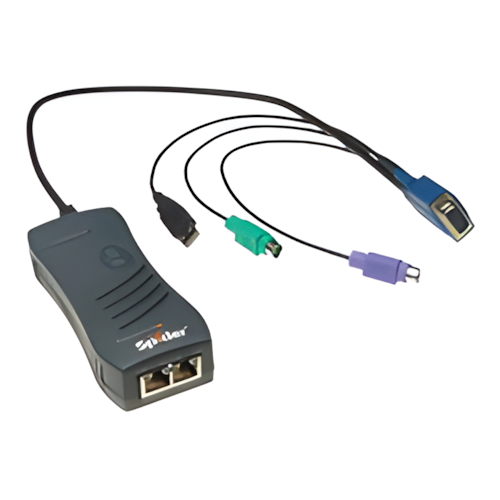

Product Description:
SecureLinx Spider provides secure KVM (keyboard, video, mouse)
server management over an IP network. Unlike any other product on the
market, Spider offers a flexible, scalable and affordable CAT5-based
remote access KVM solution in a cable friendly, compact
"zero-footprint" package.
Spider is
ideal for remotely managing geographically distributed IT equipment. It
eliminates server-to-switch CAT5 cable distance limitations and gives
system administrators 24/7 access to mission critical servers
distributed across a wide variety of network environments such as
high-density data centers, corporate or university campuses,
multi-floor buildings, branch offices, and test and development labs.
Connected
directly to the server, Spider guarantees non-blocked access from any
web browser, anywhere, at any time! More cost-effective than
traditional KVM, it provides one of the lowest "cost-per-remote-user"
server management solutions available. And no client software or
external power supply is required. Amazingly scalable, Spiders can be
easily daisy-chained together using Lantronix SwitchPort+ integrated
Ethernet switch technology. This provides an economical and highly
flexible solution in environments where numerous cable drops and
distance limitations can be a challenge when adding servers.
- Maximize server uptime, from anywhere, with KVM-over-IP
- Secure, non-blocked BIOS-level control of servers over an IP
network
- Low "cost-per-remote-user"
- Cost-effective and easy "add-as-you-grow" scalability
- "Zero U" server-powered design -- no external power supply
required
- Virtual Media support
- CAT5 KVM solution with virtually no cable length restrictions
- Browser-based -- no client software required
Security |
- Secure encryption of keyboard, mouse and video data
- IP Source Address Filtering
- Remote Authentication: LDAP, RADIUS, Active Directory
- User/Group management with permissions control
- Configurable port numbers (HTTP,HTTPS,Telnet, SSH)
- Selective disable of Telnet/SSH
|
Target Server Requirements |
Supports Multiple
Operating Systems |
Windows 98/2000/2003/XP/Vista, Unix, Linux,
or MAC OSX 10 |
Power/keyboard/mouse |
2 USB ports; or 1 USB, 1 PS/2 keyboard, and
1 PS/2 mouse connector |
Video Interface |
HD15 VGA video output (up to 1280x1024@60Hz) |
Client System Requirements |
- Internet Explorer 6.0+, Netscape 5.0+,Mozilla 1.0+, Firefox
1.0+, Safari 2.0+
- PIII Processor equivalent or better (recommended)
- Sun Java 2 Runtime Environment
- Telnet/SSH client for command line (CLI) access
|
Interfaces |
Network |
One 10/100Base-T Ethernet Port with
activity indicators (RJ45) |
Cascade |
One 10/100Base-T Ethernet Port with
activity indicators (RJ45) |
Serial |
RS-232, up to 115,200 bps |
Keyboard/Mouse |
PS/2 or USB |
Video |
HD15 VGA |
Environmental |
Operating |
0º to 45º C (32º to
115º F) |
Storage |
-20º to 70º C (-4º to
158º F) |
Humidity |
0 to 95% RH (non-condensing) |
Heat Dissipation: |
4 Watts (14 BTU/hr) |
Power Requirements |
Input |
5 VDC @ .8A max. (server powered) |
- Optional Auxiliary DC power supply available for redundancy
(p/n: 520-085-R)
|
Certification |
- UL/CUL (CSA-22.2 No. 60950-1-03 / UL-60950-1)
- CE - IEC 60950-1
- C-Tick
- FCC Part 15, Equipment Class A
- VCCI V-3/2006.04 Class A
- AS/NZS CISPR 22: 2006 Class A
- EN55022:1998 +A1:2000 +A2:2003 Class A
- EN61000-3-2: 2000 +A2: 2005 Class A
- EN61000-3-3: 1995 +A1: 2001
- EN55024: 1998 +A1:2001 +A2:2003
- RoHS Compliant (lead free)
|
Warranty |
|
|
