Product Description:

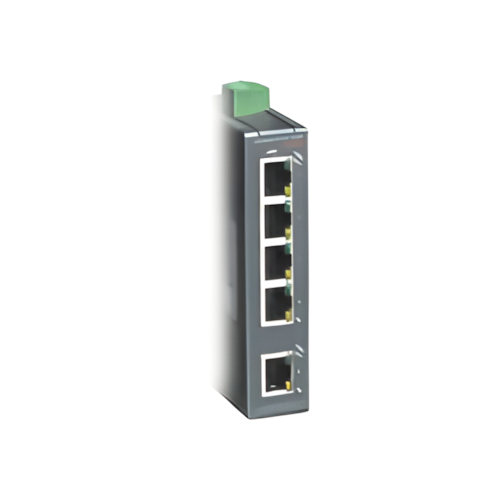

The XPress-Pro SW 52000 compact, fast Ethernet switch is equipped with
5-port 10/100Base-TX networking. By using standard auto-negotiation and
the inclusion of auto-MDIX, Lantronix delivers a cost-effective way of
integrating legacy 10 Mbps networks with 100 Mbps fast Ethernet
networks. SW 52000 TX ports auto-negotiate for 10/100 Mbps speed and
auto detect full- or half-duplex mode. SW 52000 series switches can be
DIN-rail mounted and are equipped with terminal block power input to
accommodate just about any application that requires an Ethernet
switch.
Device Type |
Switch |
Enclosure Type |
DIN rail mountable |
Width |
1 in |
Depth |
27.6 in |
Height |
4.3 in |
Memory |
RAM |
384 KB |
Networking |
Ports Qty |
5 x Ethernet 10Base-T, Ethernet
100Base-TX |
Data Transfer
Rate |
100 Mbps |
Data Link
Protocol |
Ethernet, Fast Ethernet |
Connectivity
Technology |
Wired |
Communication
Mode |
Half-duplex, full-duplex |
Switching
Protocol |
Ethernet |
MAC Address
Table Size |
2K entries |
Status Indicators |
Link activity, port transmission
speed, power |
Features |
Flow
control, auto-negotiation, trunking, VLAN support, auto-uplink (auto
MDI/MDI-X), packet filtering, port mirroring, store and forward,
Quality of Service (QoS) |
Compliant
Standards |
IEEE 802.3, IEEE 802.3u, IEEE
802.1D, IEEE 802.3x |
Expansion / Connectivity |
Interfaces |
5 x network - Ethernet
10Base-T/100Base-TX - RJ-45 female |
Miscellaneous |
Mounting Kit |
Included |
Compliant
Standards |
CE, ISO 9001, UL 60950, FCC Part 15 A |
Power |
Voltage Required |
DC 12 - 48 V |
Power
Consumption Operational |
2.4 Watt |
Environmental Parameters |
Min Operating
Temperature |
14 °F |
Max Operating
Temperature |
140 °F |
Humidity Range
Operating |
10 - 90% |
|
